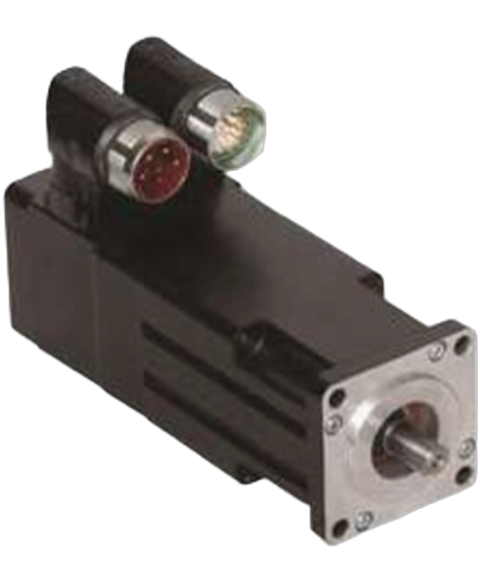

Allen Bradley MPL-A230P-VJ72AA
This high-torque motor constructed by AB has a RPM rating of 5000 revolutions per minute. Also, it has a shaft key installed for applications requiring a shaft key. In addition, this smart servo has circular DIN (180 degrees rotatable) connectors that are part of this AC servo motor and a multi-turn high-resolution (128 sin,cos) encoder. This low inertia brushless motor needs 200 volt to operate. This MP low inertia smart servo comes without brake built into the low inertia motor.
This Allen Bradley MPL-A230P-VJ72AA is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805528587.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Motors |
| Product Line | MPL Servo Motors |
| Part Number | MPL-A230P-VJ72AA |
| UPC | 884951213654 |
| Weight | 6.00 lbs (2.72 kg) |
| Series | Premium permanent magnet rotary servo motor |
| Series Type | Low-inertia |
| Voltage Class | 200 Volts AC |
| Frame Size | 75 millimeters |
| Magnetic Stack Length | 3 inches |
| Rated Speed | 5000 rpm |
| Feedback | Multi-turn high-resolution encoder |
| Shaft Key/Seal | Shaft key/no shaft seal |
| Connectors | Circular DIN, right angle, 180 degrees rotatable |
| Brake | No brake |
| Mounting Flange | IEC metric |
| Factory Designated Options | Standard |
| Brand | Allen Bradley |
