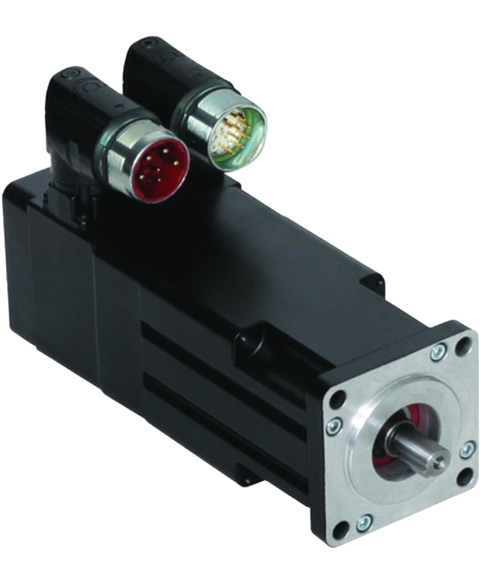

Allen Bradley MPL-A1530U-VJ72AA
This Allen Bradley (AB) 7000 revolutions per minute MP low inertia AC servo motor is a 165 mm frame size. This MPL Series high-torque motor has no brake installed. It has a shaft key, but no shaft seal included for applications requiring a shaft key. In addition, it has circular DIN (180 degrees rotatable) servo cable connections which are included on this motor. Additionally, it includes a multi-turn absolute (high-resolution) encoder.
This Allen Bradley MPL-A1530U-VJ72AA is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805546673.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Motors |
| Product Line | MPL Servo Motors |
| Part Number | MPL-A1530U-VJ72AA |
| UPC | 884951213470 |
| Weight | 3.44 lbs (1.56 kg) |
| Series | Premium permanent magnet rotary servo motor |
| Series Type | Low-inertia |
| Voltage Class | 200 Volts AC |
| Frame Size | 63 millimeters |
| Magnetic Stack Length | 3 inches |
| Rated Speed | 7000 rpm |
| Feedback | Multi-turn high-resolution encoder |
| Shaft Key/Seal | Shaft key/no shaft seal |
| Connectors | Circular DIN, right angle, 180 degrees rotatable |
| Brake | No brake |
| Mounting Flange | IEC metric |
| Factory Designated Options | Standard |
| Brand | Allen Bradley |
