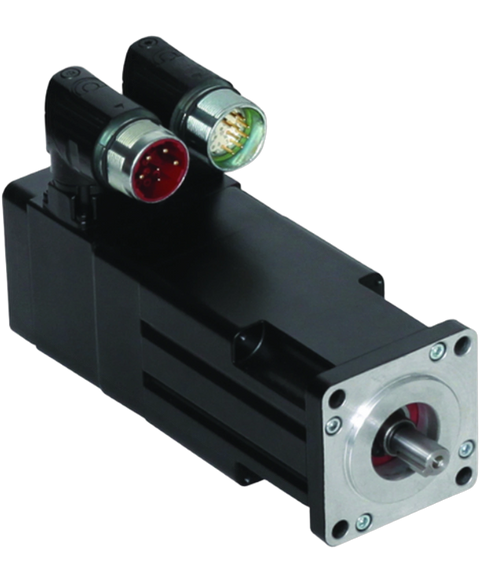

Allen Bradley MPL-A1520U-VJ72AA
The MPL-A1520U-VJ72AA by Allen Bradley (AB) is a 165 millimeter frame servo. Also, this high-torque motor has no 24 DC brake included. This high-torque motor is a 7000 revolutions per minute VAC motor, comes with a shaft key, but no shaft seal on the motor for applications requiring a shaft key, and a multi-turn (hyperface protocol) absolute encoder in the motor. Additionally, this smart servo comes with DIN style (circular) connectors which are installed on this low rotor motor. This MP low inertia AC servo comes with a magnetic stack length of 2 in.
This Allen Bradley MPL-A1520U-VJ72AA is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26931788880.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Motors |
| Product Line | MPL Servo Motors |
| Part Number | MPL-A1520U-VJ72AA |
| UPC | 884951213418 |
| Weight | 2.50 lbs (1.13 kg) |
| Series | Premium permanent magnet rotary servo motor |
| Series Type | Low-inertia |
| Voltage Class | 200V AC |
| Frame Size | 63 mm |
| Magnetic Stack Length | 2 in. |
| Rated Speed | 7000 rpm |
| Feedback | Multi-turn high-resolution encoder |
| Shaft Key/Seal | Shaft key/no shaft seal |
| Connectors | Circular DIN, right angle, 180 degrees rotatable |
| Brake | No brake |
| Mounting Flange | IEC metric |
| Factory Designated Options | Standard |
| Brand | Allen Bradley |
