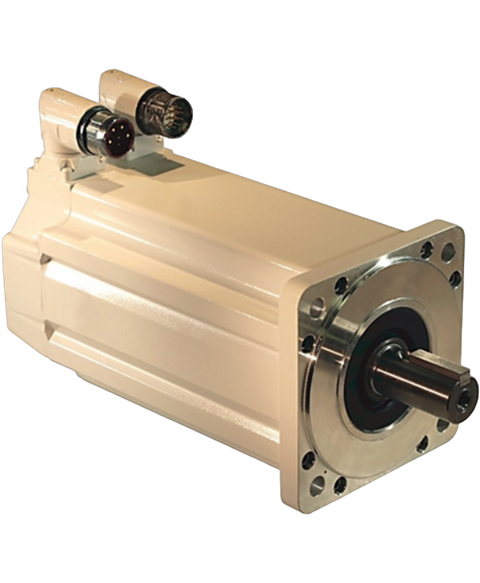

Allen Bradley MPF-B310P-MJ72BA
The MPF-B310P-MJ72BA is part of the Kinetix MPF of Low Inertia, food-grade servo motors. This servo motor is a 400 V class, Brushless AC Synchronous Servo Motor. It has a 100 mm frame size, 25.4 mm (2.0 inches) magnet stack length, and a rated speed of 5000 rpm. This servo motor is built with a multi-turn, 1024 sin,cos, absolute encoder (Hiperface protocol) that functions as a feedback device. This servomotor comes with an IP66 , IP 67 enclosure with keyed shaft.
This Allen Bradley MPF-B310P-MJ72BA is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805401915.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Motors |
| Product Line | MPF Servo Motors |
| Part Number | MPF-B310P-MJ72BA |
| UPC | 820919985096 |
| Weight | 6.00 lbs (2.72 kg) |
| Voltage | 460 V |
| Product Family | MPF Series Low Inertia, Food grade servo motors |
| Rotations Per Minute | 5000 |
| Voltage class | 400 VAC |
| Encoder | 1024 sin/cos, absolute multi-turn encoder device that supports Hiperface protocol |
| Rated Power | 0.77 kW |
| Frame Size | 100 mm |
| Continuous Stall Torque | 1.58 N-m (14 lb-in) |
| Stack Length | 1.0 in (25.4 mm) |
| Peak Stall Torque | 3.61 N-m (32 lb-in) |
| Mounting Holes | Type FF |
| Rotor inertia | 0.00044 kg-m2 (0.00039 lb-in-s2) |
| Brake | No |
| Rated speed | 5000 RPM |
| Shaft Extension | Keyed |
| Maximum speed | 5000 RPM |
| IEC Metric | Oversized |
| Magnet stack | 25.4 mm (2.0 inches) |
| 24 VDC holding Brake | None |
| Compatible Servo Drives | Kinetix 5500, Kinetix 6200/6500, Kinetix 6000, Kinetix 300/350, Kinetix 2000 and Ultra3000 Servo Drives |
| Compatible Applications | Food packaging, Volumetric filling, Form, fill, seal, Food handling, for meat and poultry |
| Connection | Circular SpeedTec DIN connector, right angle, 180° rotatable |
| Protection rating | IP66 / IP67 (standard) |
| Shaft seal | MPF-SST-A3B3 |
| Brand | Allen Bradley |
