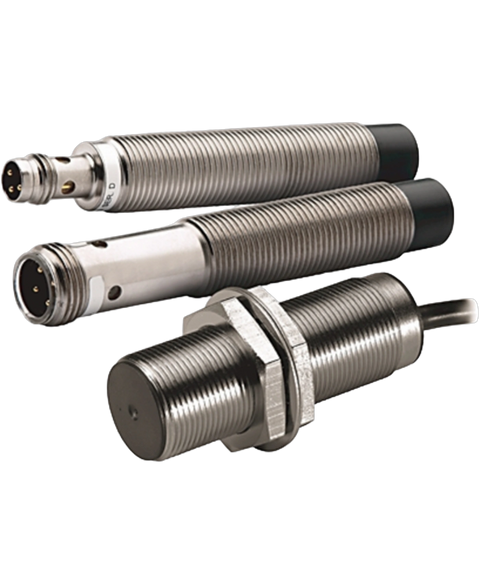

Allen Bradley 872C-DH4NN12-D4
The 872C-DH4NN12-D4 is a capacitive proximity sensor developed by Allen Bradley. This sensor is designed for versatile applications, operating effectively within an extensive voltage range from 20 to 250 volts AC.
This Allen Bradley 872C-DH4NN12-D4 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Proximity range and is referenced internally as PartLogic SKU PL26868626672.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | Inductive Proximity Sensor |
| Product Line | Bulletin 872C |
| Part Number | 872C-DH4NN12-D4 |
| Weight | 0.13 lbs (0.06 kg) |
| Shielded | No |
| Barrel Diameter | 12 mm (0.47 in) |
| Nominal Sensing Distance | 4 mm (0.16 in) |
| Output Configuration | NPN |
| Hysteresis | ≤15% typical |
| Repeatability | ≤5% |
| Voltage Drop | ≤5V |
| Operating Voltage | 20-250V AC |
| Leakage Current | ≤2 mA |
| Inrush Current (1 cycle) | ≤2 A |
| Minimum Load Current | 5 mA |
| Load Current | ≤300 mA |
| Vibration | 55 Hz, 1 mm amplitude, 3 planes |
| Shock | 30 g, 11 ms |
| Brand | Allen Bradley |
