Allen Bradley 802T-AP

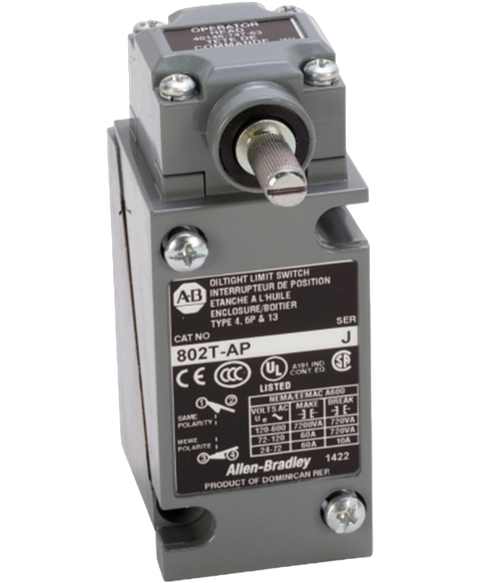

The 802T-AP is part of the 802T plug-in style oil tight limit switch. This switch is a 2-circuit switch with Double Pole, Double Throw (DPDT) contacts rated 120 VAC - 600 VAC with make contact rating of 7200 VA and Break contact rating of 720 VA; 72-120 VAC with make contact rating of 60 Amperes and break contact rating of 720 VA; 24-72 VAC with make contact rating of 60 Amperes and Break contact rating of 10 Amperes. This switch supports the clockwise and counterclockwise operation.
This Allen Bradley 802T-AP is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Limit switches range and is referenced internally as PartLogic SKU PL26801409319.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Motors |
| Product Line | 802T Limit Switches |
| Part Number | 802T-AP |
| UPC | 662468079549 |
| Weight | 1.19 lbs (0.54 kg) |
| Product Family | Limit Switches |
| Product Description | Oiltight Limit Switch |
| Product category | Plug-in Style Oiltight Switches |
| Certifications | UL Listed, CSA Certified, and CE Marked for applicable directives |
| Mounting Orientation | Horizontal |
| Operating voltage | 120-600 VAC; |
| No. of circuits | Two (2) |
| Number of Circuits | 4 |
| Continuous Current capacity | NEMA Designation AC600 AC-15 / AC300: 10 A NEMA Designation BC600 AC-15: 5 A |
| Enclosure Type Rating | NEMA 4, 13, 6P, and IP67 |
| Relative Humidity | 5â95% (nonâcondensing) |
| Contact rating | 115-125 VDC: 0.4 A; 230-250 VDC: 0.2 A; 550-600 VDC: 0.1 A |
| Pollution Degree | 3 |
| Environmental Protection Rating | IP67 |
| Actuation type | Lever |
| Ambient Temperature | 18…+110° (0…+230°) Exception: Wobble stick and cat whisker devices are rated from -18…+54° (0…+130°) |
| Operating Temperature | -18 to 110 degrees Celsius (0 to 230 degrees Fahrenheit) |
| DC Contact rating | 0.4 Amperes at 115-125 VDC; 0.2 Amperes at 230-250 VDC; 0.1 Amperes at 550-600 VDC |
| Mounting | Rear or Front-Mounting Available |
| Spring return | Yes |
| AC contact continuous current | 10 Amperes |
| Maximum Operating Voltage | 600V AC |
| Operation | Clockwise (CW) / Counter-Clockwise (CCW) |
| AC contact rating @ 120 VAC | Make: 60 A Break: 6.0 A |
| Maximum Operating Current | 10 A |
| Maximum travel for actuation | 13o |
| AC contact rating @ 240 VAC | Make: 30 A Break: 3.0 A |
| Maximum travel to reset | 7o |
| AC contact rating @ 480 VAC | Make: 15 A Break: 1.5 A |
| Operating Torque | 0.29 N-m (2.5 lb-in) 20-250 Hz |
| AC contact rating @ 600 VAC | Make: 12 A Break: 1.2 A |
| Assembly type | Plug-in |
| Brand | Allen Bradley |
