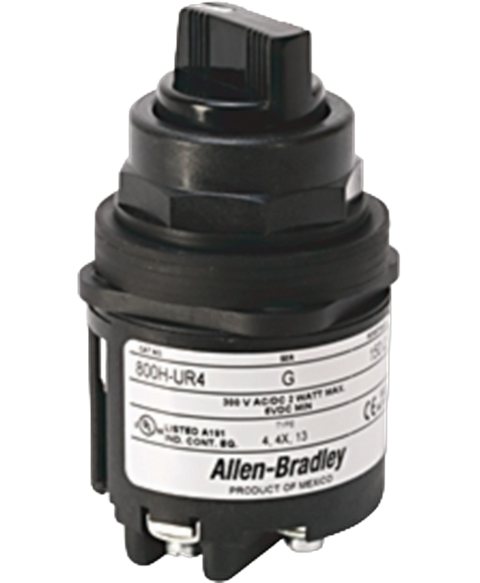

Allen Bradley 800H-UR24
The 800H-UR24 is a 30 mm potentiometer in the Allen Bradley 800H Push Buttons series, optimized for various control applications. It features a supply voltage rating that accommodates both AC and DC, ranging from 12 to 130 volts, with a resistance value of 5000 Ohms.
This Allen Bradley 800H-UR24 is supplied brand new by PartLogic for machine control, process visibility, operator input, production monitoring and industrial automation applications. It forms part of our Industrial automation > Hmi > Push buttons range and is referenced internally as PartLogic SKU PL26981631080.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | 30 mm Potentiometer |
| Product Line | 800H Push Buttons |
| Part Number | 800H-UR24 |
| Weight | 0.31 lbs (0.14 kg) |
| UPC | 662073632528 |
| Supply Voltage Rating | 12 - 130V AC/DC |
| Resistance | 5000 Ohms |
| Hole Diameter | 30.5 mm |
| Enclosure Rating | Type 4/4X |
| Rated Voltage | 300 V AC / DC |
| Power Rating | 2 W |
| Rotation / Travel | Single-turn, 312° rotation |
| Relative Humidity | 50% |
| Electric Connection | Screw-terminal |
| Shock Resistance | 100 G |
| Vibration Resistance | 10 G |
| Wire Range | 14–18 AWG |
| Termination Screw Torque | 0.8 N⋅m |
| Brand | Allen Bradley |
