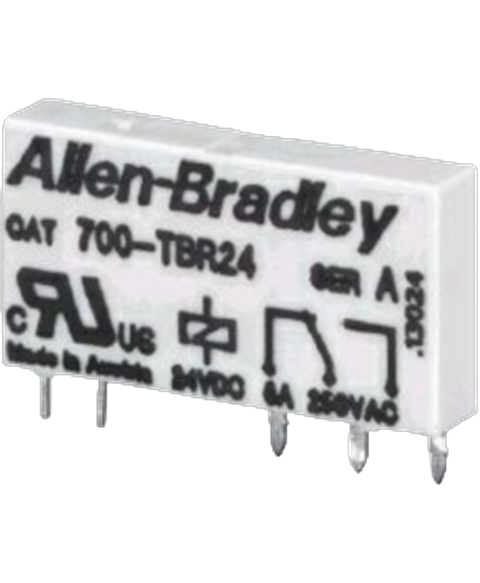

Allen Bradley 700-TBR224
The Allen Bradley 700-TBR224 relay serves as a versatile replacement option. Functioning under a nominal voltage of 24 Volts DC or AC, this device can handle an input current of up to 6 Amperes.
This Allen Bradley 700-TBR224 is supplied brand new by PartLogic for control circuits, automation panels, signal switching, machine safety and industrial maintenance applications. It forms part of our Industrial automation > Electrical components > Relays range and is referenced internally as PartLogic SKU PL26801460564.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | Replacement Relay |
| Product Line | Bulletin 700 |
| Part Number | 700-TBR224 |
| Weight | 0.06 lbs (0.03 kg) |
| Input Current Rating | 6 Amperes |
| Nominal Operating Voltage | 24 Volts DC/AC |
| Degree of Protection | IP20 |
| Total Making Time | 7 milliseconds |
| Contact Material | Silver nickel (AgNi) contact |
| Insulation Voltage Rating | 250 Volt AC between coil and contacts |
| Electrical Life Span | 100,000 operations |
| Dielectric Strength | 1,000 Volts AC between open contacts |
| Configuration of Contact | Two Change-Over (CO) contacts |
| Mounting Method | Plug-in mount |
| Total Braking Time | 3 milliseconds |
| Rated Operational Current | 3 Amperes at 230 Volts and 10 Amperes at 250 Volts |
| Coil Voltage Rating | 24 Volts DC/AC |
| Compatible Relays | Double Pole, Double Throw (DPDT) |
| Brand | Allen Bradley |
