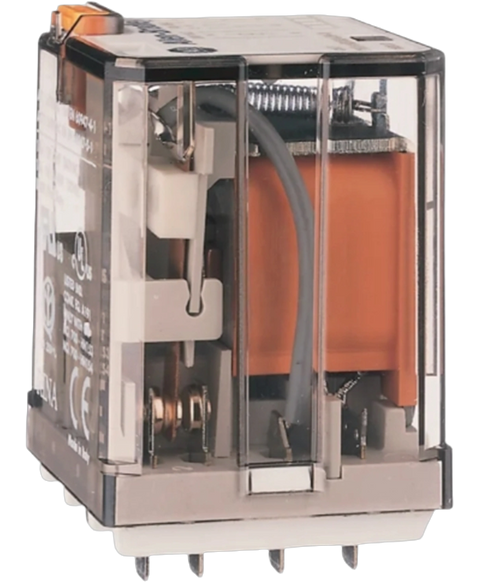

Allen Bradley 700-HB32Z24
The 700-HB32Z24 from Allen Bradley is a compact relay known for its reliability and performance in control applications. It operates on a 24-volt DC coil, making it suitable for various low-voltage applications.
This Allen Bradley 700-HB32Z24 is supplied brand new by PartLogic for control circuits, automation panels, signal switching, machine safety and industrial maintenance applications. It forms part of our Industrial automation > Electrical components > Relays range and is referenced internally as PartLogic SKU PL27205221479.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | Miniature Square Base Relay (Ice Cube Style) |
| Product Line | 700-H Relays |
| Part Number | 700-HB32Z24 |
| Weight | 0.25 lbs (0.11 kg) |
| Coil Voltage (Control) | 24 volts DC |
| Coil Power | 1.3 watts (Approximately) |
| Contact Configuration | DPDT (Double-Pole, Double-Throw) or 2 Changeover Contacts |
| Number of Pins | 8 Blades (Standard Square Base Pinout) |
| Rated Contact Current | 15 amps |
| Rated Switching Power | 3750 VA (AC-1) |
| Contact Material | Silver Cadmium Oxide |
| Key Features | Includes a standard ON/OFF Flag Indicator (but no LED or manual latch) |
| Mounting | Plug-in connection (8-pin square base socket) |
| IP Rating | IP40 class |
| Mechanical Life | 30,000,000 operations |
| Brand | Allen Bradley |
