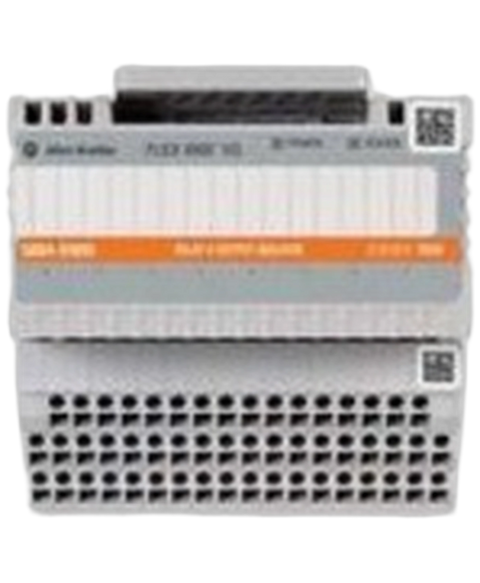

Allen Bradley 5094-OW8I
The Allen-Bradley 5094-OW8I output module from the Flex 5000 series is an isolated relay output module. It has 8 isolated relay output channels. The 5094-OW8I isolated relay output module can operate with AC voltage and with DC voltage. Its AC voltage range is from 5 to 240 Volts AC and its DC voltage range is from 5 to 125 Volts DC. The 5094-OW8I isolated relay output module has a maximum power dissipation rating of 3.5 Watts and a maximum thermal dissipation rating of 11.94 BTU per hour.
This Allen Bradley 5094-OW8I is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Digital output > Compact 5000 range and is referenced internally as PartLogic SKU PL26948632972.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | FLEX 5000 |
| Part Number | 5094-OW8I |
| UPC | 889508097619 |
| Weight | 0.44 lbs (0.20 kg) |
| Module Type | Safety Digital 4-point Isolated Relay Output Module |
| Relay rating | 2 A resistive/channel @ 5...30V DC 2 A resistive/channel @ 5...240V AC, 50/60 Hz 2 A general/channel @ 5...240V AC, 50/60 Hz 2 A ATEX/IECEx @ 5...240V AC, 50/60 Hz |
| Off-state leakage | 0 mA (dry contact, no onboard snubbers) |
| Output current rating, max | 2 A per channe |
| Output delay time, max for Off to On and On to Off | 10 ms 10 ms |
| Initial contact resistance, max | 30 mΩ |
| Bounce time, mean | 500 μs |
| Output control in fault state per poin | •Hold last state •On •Off (default |
| Output states in program mode per point | •Hold last state •On •Off (default) |
| Output states in fault mode per point | •Hold Last State•On•Off (default) |
| Duration of fault mode per poin | •1 s •2 s •5 s •10 s •Forever (default) |
| Delay to fault | Supported |
| Brand | Allen Bradley |
