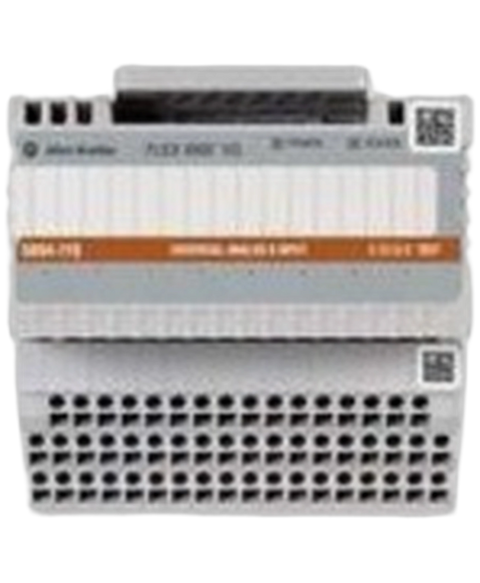

Allen Bradley 5094-IY8
The Allen-Bradley 5094-IY8 input module is a Flex 5000 series analog input module. It is also a voltage, current, RTD, and thermocouple type of input module that can be used in different systems and applications. The 5094-IY8 input module has 8 analog input channels that are differential and single-ended. It supports input voltage ranges of +,-10 Volts, 0 to 10 Volts, and 0 to 5 Volts, and it supports input current ranges of 0 to 20 milliamps or 4 to 20 milliamps. The 5094-IY8 input module does not come with a terminal base, but it can be installed on a separate terminal base that will host its field side wiring.
This Allen Bradley 5094-IY8 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Analog input > Compact 5000 range and is referenced internally as PartLogic SKU PL26933389966.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | FLEX 5000 |
| Part Number | 5094-IY8 |
| UPC | 889508097589 |
| Weight | 1.00 lbs (0.45 kg) |
| Module Type | Analog 8-channel Current/Voltage/RTD/Thermocouple Input Module |
| Inputs | 8 differential/single-ended |
| Differential / Single-ended mode | Yes |
| Input range, voltage | ±10V0...10V0...5V |
| Input range, current | 0...20 mA4...20 mA |
| Input range, resistive | 1...500 Ω2...1000 Ω4...2000 Ω8...4000 Ω |
| Input type, RTD | 100, 200, 500, 1000 Ω platinum, alpha=385100, 200, 500, 1000 Ω platinum, alpha=3916120 Ω nickel, alpha=672100, 120, 200, 500 Ω nickel, alpha=61810 Ω copper 427 |
| Input range, thermocouple / millivolt | ±100 mV |
| Input type, thermocouple | B, C, D, E, J, K, L (TXK/XK), N, R, S, T |
| Input impedance | Voltage: >1 MΩCurrent: 90 Ω typical, 70...110 Ω rangeRTD: >1 MΩThermocouple/millivolt: >1 MΩ |
| Common mode voltage (channel to channel)(for Differential mode only) | ±10V |
| Module conversion method | Sigma-Delta,Two 24-bit multiplexed ADC |
| Brand | Allen Bradley |
