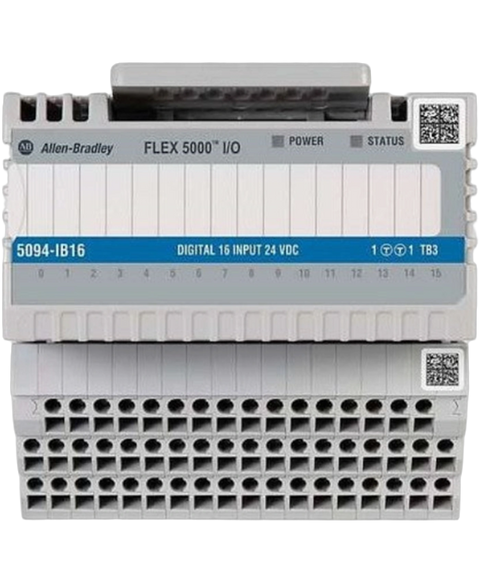

Allen Bradley 5094-IB16
The Allen-Bradley 5094-IB16 module is a Flex 5000 series input module. It features 16 sinking input channels. The 5094-IB16 sinking input module can support the Ethernet industrial communication network. It operates with an on-state voltage range of 18 to 32 Volts DC. The 5094-IB16 sinking input module can operate at a maximum altitude of 2000 meters above sea level without derating.
This Allen Bradley 5094-IB16 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Digital input > Compact 5000 range and is referenced internally as PartLogic SKU PL26935535852.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | FLEX 5000 |
| Part Number | 5094-IB16 |
| UPC | 191326328333 |
| Weight | 0.19 lbs (0.09 kg) |
| Module Type | Safety Digital 16-point Sinking Input Module |
| On-state voltage range | 10 to 32 Volts DC |
| On-state current, min | 2 mA at 10 Volts DC |
| On-state current, nom | 6 mA at 24 Volts DC |
| On-state current, max | 8 mA at 32 Volts DC |
| Off-state voltage, max | 5 Volts DC |
| Off-state current, max | 1.5 mA |
| Input impedance, min | 1.3 kΩ at 10 Volts DC |
| Input impedance, nom | 4 kΩ at 24 Volts DC |
| Input impedance, max | 7.4 kΩ at 32 Volts DC |
| Module inrush current, max | 250 mA peak (decaying to 37% in 22 ms, without activation) |
| Input delay time (screw to backplane), max for Off to On and On to Off | 100 μs at 25 °C (77 °F)100 μs at 25 °C (77 °F) |
| Brand | Allen Bradley |
