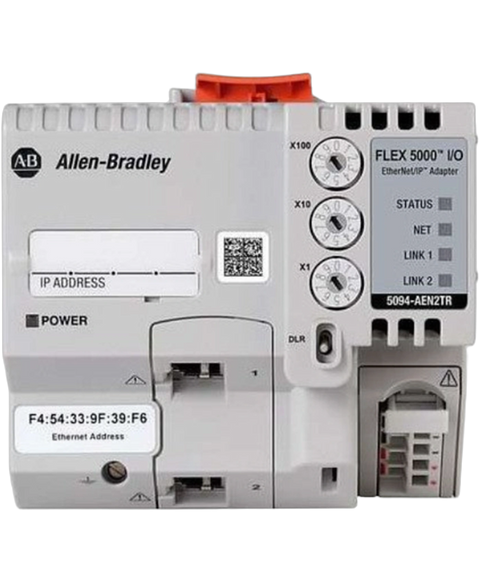

Allen Bradley 5094-AEN2TR
The Allen-Bradley,Rockwell Automation 5094-AEN2TR Ethernet adapter module is a FLEX 5000 series adapter module. It acts as an Ethernet adapter for FLEX 5000 series I,O modules. The 5094-AEN2TR Ethernet adapter module can serve up to 16 FLEX 5000 series I,O modules at a time. It supports copper media and it can support Ethernet speeds of up to 1 Gbps. The 5094-AEN2TR Ethernet adapter module supports star, linear, and DLR Ethernet network topologies.
This Allen Bradley 5094-AEN2TR is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Communication > Compact 5000 range and is referenced internally as PartLogic SKU PL26941359097.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | FLEX 5000 |
| Part Number | 5094-AEN2TR |
| UPC | 889508455990 |
| Weight | 1.00 lbs (0.45 kg) |
| Adapter Type | FLEX 5000 EtherNet/IP Adapter with RJ45 Ports |
| Voltage and current ratings, MP | 18...32V DC, 1880 mA |
| Voltage and current ratings, MP inrush | 18...32V DC, 5700 mA for 100 ms |
| Voltage and current ratings, backplane | 15V DC, 1800 mA |
| Recommended external overcurrent protection | MOD Power: 10...12A @ 22.5...43.2 A2t, Fast ActingSA Power: 20 A @ 250V AC |
| Power dissipation, max | 6.2 W @ 18V DC |
| Thermal dissipation, max | 21.1 BTU/hr @ 24V DC |
| Isolation voltage | 300V (continuous), Basic Insulation Type Tested @ 2121V AC for 60 s, Power to Backplane and Backplane to Ethernet Tested @ 4242V DC for 60 s, Power to Ethernet ports No isolation between Ethernet ports |
| Wiring category | 1 - on power ports. 1- on Ethernet ports. |
| Wire type | Copper |
| Wire size, power RTB | 0.34...2.5 mm (22...14 AWG) solid or stranded copper wire rated at 105 °C (221 °F), or greater, 1.2 mm (3/64 in.) insulation, max, single wire connection only. Ferrule according to DIN 46 228/1. |
| Wire size, functional earth terminal | 2.5 mm (14 AWG) solid or stranded copper wire rated at 105 °C (221 °F), or greater, 3.5 mm (0.14 in.) max diameter including insulation, single wire connection only. |
| Brand | Allen Bradley |
