Allen Bradley 5069-SERIAL

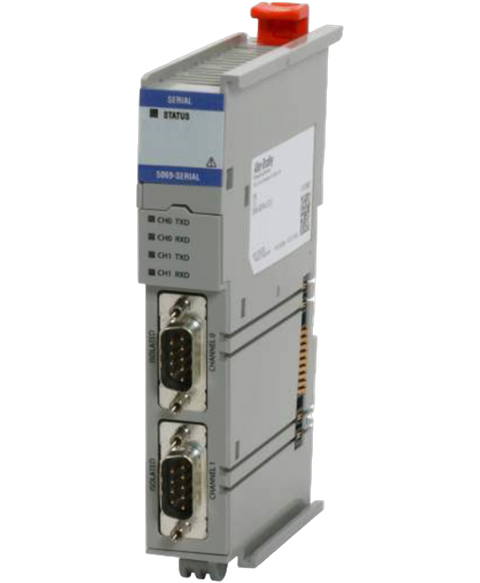

The Allen-Bradley 5069-SERIAL is a Compact 5000 Serial communication module. This module is compatible with CompactLogix 5380, Compact GuardLogix 5380 and CompactLogix 5480 controllers functioning as local and remote module and ControlLogix 5580 and GuardLogix 5580 as remote module only. This serial communication module features Two (2) isolated 9 Pin sub-D connector type serial interface that supports Generic ASCII, Modbus RTU,ASCII (Master,Slave), DF1 and DH-485 communication protocols.
This Allen Bradley 5069-SERIAL is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Communication > Compact 5000 range and is referenced internally as PartLogic SKU PL26939070872.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | CompactLogix 5069 |
| Part Number | 5069-SERIAL |
| UPC | 889508480275 |
| Weight | 2.00 lbs (0.91 kg) |
| Series | Compact 5000 I/O |
| MOD power | 100 mA,18…32V DC |
| Slot width | 1 |
| Module Type | Serial Communication module |
| No. of Ports | Two (2) RS232 / RS422 / RS485 isolated ports |
| Supported protocols | Generic ASCII, Modbus RTU/ASCII (Master/Slave), DF1 and DH-485 |
| Compatible controllers | Local and Remote: CompactLogix 5380, Compact GuardLogix 5380 and CompactLogix 5480 Remote Only: ControlLogix 5580 and GuardLogix 5580 |
| Mod Power Passthrough | 9.55A,18…32V DC |
| SA Power Passthrough | 9.95A,0…32V DC |
| Status indicators | CH0 TXD CH0 RXD CH1 TXD CH2 RXD Module Status |
| Inputs | full-duplex (RS-232, RS-422) and 2 half-duplex (RS-485) |
| Operating modes | Generic ASCII, DF1 (local channel 1 only), DH485 (local channel 1 only), Modbus RTU, Modbus ASCII |
| Isolation voltage | 250 Volts (continuous) |
| Power dissipation | 2.8 Watts (maximum) |
| Thermal dissipation | 9.6 BTU per hour (maximum) |
| Serial port connectors | Two (2) DB-9 male with pins |
| Brand | Allen Bradley |
