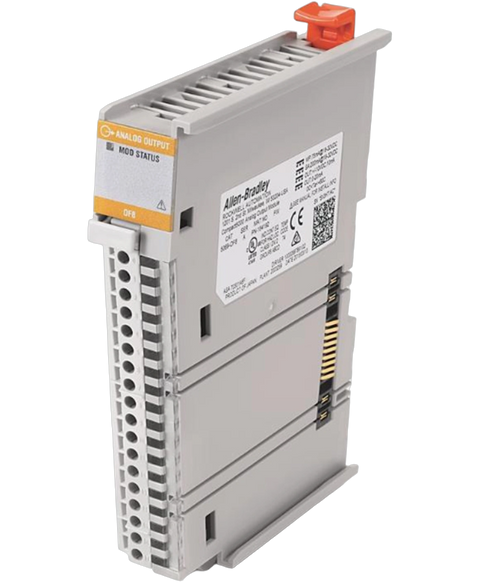

Allen Bradley 5069-OF8
The Allen-Bradley 5069-OF8 is a Compact 5000 analog output module. This module features Eight (8) analog output channels, configurable for Voltage and Current signals. It delivers output Voltage signal ranges of ±10V; 0-10V and 0-5VDC and output Current range of 0-20 mA and 4-20 mA. This module uses R-Ladder DAC, monotonicity with no missing codes with 160bit resolution.
This Allen Bradley 5069-OF8 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Analog output > Compact 5000 range and is referenced internally as PartLogic SKU PL26805673192.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | CompactLogix 5069 |
| Part Number | 5069-OF8 |
| UPC | 885630530116 |
| Weight | 0.25 lbs (0.11 kg) |
| Module Type | Analog output module |
| Series | Compact 5000 I/O |
| No. of Inputs | Eight (8) channels |
| Output Voltage signal | ±10VDC; 0-10VDC; 0-5VDC |
| Output Current signal | 0-20 mA and 4-20 mA |
| Conversion method | R-Ladder DAC, monotonicity with no missing codes |
| Conversion time per channel | 25 µs |
| Resolution | 16 bits across ± 10.5V - 320 µV/bit 16 bits across 10.5V - 160 µV/bit 16 bits across 5.25V - 80 µV/bit 16 bits across 21 mA - 320 nA/bit |
| Open circuit detection | Current mode only |
| Data format | IEEE 32-bit floating point |
| Analog output ratings | +/–10V DC, 0…20 mA per channel |
| MOD Power | 75 mA @ 18…32V DC |
| MOD Power Passthrough, max | 9.55 A @ 18…32V DC |
| SA Power | 250 mA @ 18…32V DC |
| SA Power Passthrough, max | 9.95 A @ 18…32V DC |
| Number of Inputs | N/A |
| Number of Outputs | 8 Voltage or Current Outputs |
| Voltage Category | N/A |
| Input Voltage Range | N/A |
| Output Voltage Range | +/- 10 Volts, 0-10 Volts, 0-5 Volts |
| Power Dissipation | 5.3 Watts |
| Enclosure Type | None (Open Style) |
| CIP Sync Supported | Yes |
| Pattern Matching Supported | Yes |
| Brand | Allen Bradley |
