Allen Bradley 5069-OF4

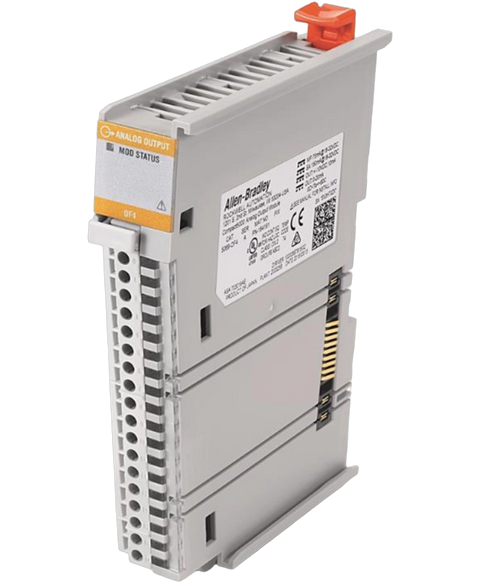

The 5069-OF4 module is an output module from the Allen-Bradley CompactLogix 5069 and Compact 5000 series. It comes with 4 analog output modules. The 5069-OF4 output module can operate with voltage signals and with current signals. The supported voltage ratings are +,-10 Volts DC, 0 to 10 Volts DC, and 0 to 5 Volts DC. Additionally, the 5069-OF4 output module's supported current ratings are 0 to 20 milliamps and 4 to 20 milliamps.
This Allen Bradley 5069-OF4 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Analog output > Compact 5000 range and is referenced internally as PartLogic SKU PL26805552518.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | CompactLogix 5069 |
| Part Number | 5069-OF4 |
| UPC | 885630530093 |
| Weight | 0.56 lbs (0.26 kg) |
| Module Type | Analog output module |
| Series | Compact 5000 I/O |
| No. of Inputs | Four (4) channels |
| Output Voltage signal | ±10VDC; 0-10VDC; 0-5VDC |
| Output Current signal | 0-20 mA and 4-20 mA |
| Conversion method | R-Ladder DAC, monotonicity with no missing codes |
| Conversion time per channel | 25 µs |
| Resolution | 16 bits across ± 10.5V - 320 µV/bit 16 bits across 10.5V - 160 µV/bit 16 bits across 5.25V - 80 µV/bit 16 bits across 21 mA - 320 nA/bit |
| Open circuit detection | Current mode only |
| Data format | IEEE 32-bit floating point |
| Analog output ratings | +/–10V DC, 0…20 mA per channel |
| MOD Power | 75 mA @ 18…32V DC |
| MOD Power Passthrough, max | 9.55 A @ 18…32V DC |
| SA Power | 150 mA @ 18…32V DC |
| SA Power Passthrough, max | 9.95 A @ 18…32V DC |
| Number of Inputs | N/A |
| Number of Outputs | 4 Voltage or Current Outputs |
| Voltage Category | N/A |
| Input Voltage Range | N/A |
| Output Voltage Range | +/- 10 Volts, 0-10 Volts, 0-5 Volts |
| Power Dissipation | 3.3 Watts |
| Enclosure Type | None (Open Style) |
| CIP Sync Supported | Yes |
| Pattern Matching Supported | Yes |
| Brand | Allen Bradley |
