Allen Bradley 5069-OB16

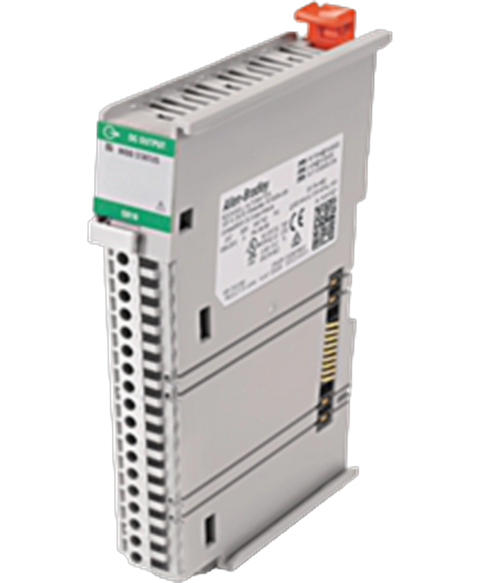

The Allen-Bradley 5069-OB16 is a Compact 5000 Discrete output module. This module features Sixteen (16) single group sourcing output channels that operates at voltage range of 10-32VDC. It provides output current of 0.5 A resistive per channel @ 10…32V DC and 8 A resistive per module @ 10…32V DC, max. This module may be used as Local I,O or distributed I,O component. It uses 5069-RTB18-SPRING RTB and 5069-RTB18-SCREW RTB.
This Allen Bradley 5069-OB16 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Digital output > Compact 5000 range and is referenced internally as PartLogic SKU PL26801449037.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | CompactLogix 5069 |
| Part Number | 5069-OB16 |
| UPC | 885630530079 |
| Weight | 0.56 lbs (0.26 kg) |
| Module Type | DC Output module |
| Series | Compact 5000 I/O |
| No. of Outputs | Sixteen (16) DC output channels |
| Output Voltage signal, nominal | 24VDC |
| Output Voltage Signal range | 10-32VDC |
| Output current rating | 0.5 A resistive per channel @ 10…32V DC 8 A resistive per module @ 10…32V DC, max |
| Surge Current per point | 1 A max for 10 ms per point, repeatable every 2 s |
| Output delay time | ? 100 µs, ±10 µs @ 25 °C (77 °F) @ 0.5 A |
| Pulse width, min | 200 µs @ 0.5 A @ 25 °C (77 °F) |
| No. of output groups | One (1) |
| Removable Terminal Block | 5069-RTB18-SPRING RTB; 5069-RTB18-SCREW RTB |
| Output states (Fault mode, fault state Program mode) | Hold Last State; On; Off (default) |
| Duration of fault mode per point | 1 s, 2 s, 5 s, 10 s, Forever (default) |
| Number of Inputs | N/A |
| Number of Outputs | 1 Group of 16 Channels (Sourcing) |
| Voltage Category | 12/24 Volts DC Source |
| Input Voltage Range | N/A |
| Output Voltage Range | 10-32 Volts DC |
| Power Dissipation | 3.25 Watts |
| Enclosure Type | None (Open Style) |
| Pulse Latching Supported | Yes |
| Pattern Matching Supported | Yes |
| Brand | Allen Bradley |
