Allen Bradley 5069-OA16

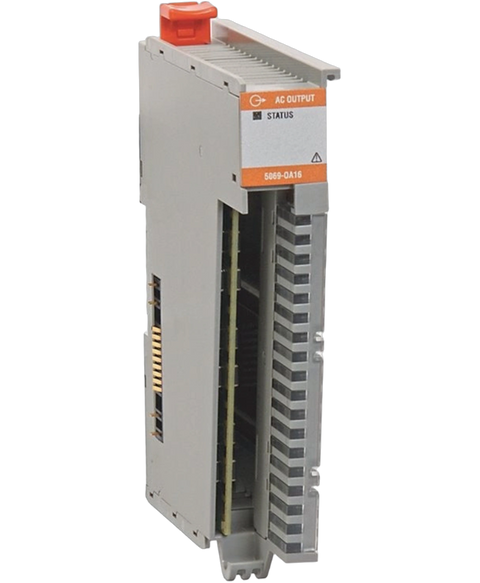

The Allen-Bradley 5069-OA16 is a Compact 5000 Discrete output module. This module features Sixteen (16) single group discrete output channels that operates at voltage range of 85-264VAC, 47-63 Hz. It provides output current of 0.5 A per channel and maximum of 4 A per module. This module may be used as Local I,O or distributed I,O component. It uses 5069-RTB18-SPRING RTB and 5069-RTB18-SCREW RTB.
This Allen Bradley 5069-OA16 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Digital output > Compact 5000 range and is referenced internally as PartLogic SKU PL26801462483.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | CompactLogix 5069 |
| Part Number | 5069-OA16 |
| UPC | 889508141619 |
| Weight | 1.00 lbs (0.45 kg) |
| Module Type | AC Output module |
| Product Family | Compact I/O modules |
| No. of channels | Sixteen (16) |
| Output Voltage | 85-264VAC |
| Output Frequency | 47-63 Hz |
| Output Current, channel | 0.5 A |
| Output Current, module | 4.0 A |
| MOD Power | 100 mA @ 18…32V DC |
| SA Power | 4 A @ 85…264V AC |
| Removable Terminal Block (RTB) | 5069-RTB18-SCREW; 5069-RTB18-SCREW |
| Wire size | 0.5…1.5 mm2 (22…16 AWG) solid or stranded shielded copper wire rated at 105 °C (221 °F), or greater, 3.5 mm (0.14 in.) max diameter including insulation, single wire connection only. |
| Spring Type | 0.5…1.5 mm2 (22…16 AWG) solid or stranded shielded copper wire rated at 105 °C (221 °F), or greater, 2.9 mm (0.11 in.) max diameter including insulation, single wire connection only. |
| Operating Temperature | 0 °C \u003C Ta \u003C +60 °C (+32 °F \u003C Ta \u003C +140 °F) |
| Enclosure | None (Open type) |
| Series | Compact 5000 I/O |
| No. of Outputs | Sixteen (16) AC output channels |
| Output Voltage signal, nominal | 120 / 240VAC |
| Output current per module, max | 4:00 AM |
| Pilot Duty rating | 0.5 A pilot duty |
| No. of output groups | One (1) |
| Removable Terminal Block | 5069-RTB18-SPRING RTB; 5069-RTB18-SCREW RTB |
| Output states (Fault mode, fault state Program mode) | Hold Last State; On; Off (default) |
| Duration of fault mode per point | 1 s, 2 s, 5 s, 10 s, Forever (default) |
| Number of Inputs | N/A |
| Number of Outputs | 1 Group of 16 Channels |
| Voltage Category | 120/240 Volts AC |
| Input Voltage Range | N/A |
| Output Voltage Range | 85-264 Volts AC |
| Power Dissipation | 3.4 Watts |
| Enclosure Type | None (Open Style) |
| Pulse Latching Supported | Yes |
| Pattern Matching Supported | Yes |
| Brand | Allen Bradley |
