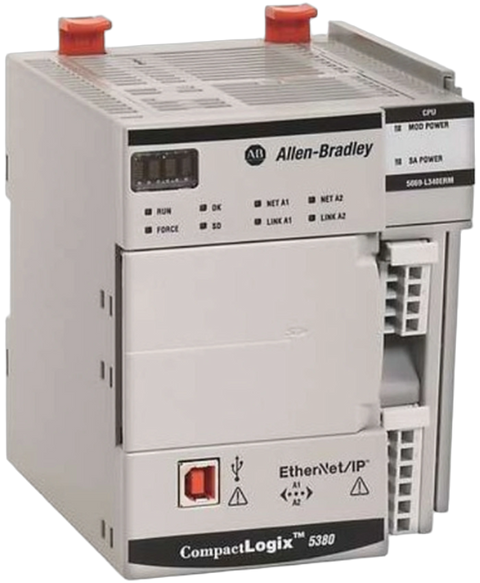

Allen Bradley 5069-L310ERM
The Allen-Bradley 5069-L310ERM controller is a standard controller that is available from the CompactLogix 5069 series and the CompactLogix 5380 series. It can support 24 Ethernet,IP nodes. The 5069-L310ERM controller can also support 4 integrated motion axes. It can work with between 1 and 8 local I,O modules in a system at a time. The 5069-L310ERM controller supports a data access control feature, an SD card, and standard connections.
This Allen Bradley 5069-L310ERM is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Cpu > Compact 5000 range and is referenced internally as PartLogic SKU PL26941302877.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | CompactLogix 5069 |
| Part Number | 5069-L310ERM |
| UPC | 889508071329 |
| Weight | 6.00 lbs (2.72 kg) |
| Programming Languages | Sequential Function Chart, Function Block Diagram, Structured Text, and Ladder Diagram |
| Communication Ports | 1 Type B 2.0 Full-Speed USB and 2 Ethernet/IP Ports |
| Ethernet/IP Nodes | 24 Ethernet/IP Nodes |
| Supported Ethernet/IP Network Topologies | Device Level Ring, Star, and Linear |
| Application Memory | 1 Megabytes |
| Module Type | Controller |
| Non-volatile memory | 2GB via 1784-SD2 (ships with the controller) |
| Local I/O modules | 8 I/O modules |
| Communication rate, Ethernet | 10 Mbps / 100 Mbps / 1 Gbps |
| Communication rate, USB | 12 Mbps |
| Motion Axes, maximum | 256 Motion Axes |
| CIP drive axes | Four (4) |
| I/O Expansion | 8 I/O |
| Motion Axes | 4 Motion Axes |
| Pulse Latching Supported | Yes |
| Pattern Matching Supported | Yes |
| Brand | Allen Bradley |
