Allen Bradley 5069-IY4

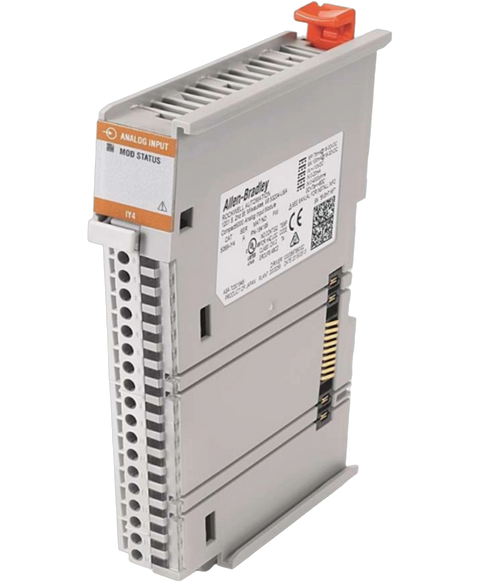

The Allen-Bradley 5069-IY4 is a Compact 5000 Analog Input module. This module is has Four (4) input channels configurable for Current,Voltage,RTD,Thermocouple inputs. This module has Four (4) differential inputs, compatible with a variety of signal levels such a ±10V, 0-10V and 0-5V for Voltage; 0-20 mA and 4-20 mA for Current; 1-500 ?, 2-1000 ?, 4-2000 ? and 8-4000 ? for resistive; 100, 200, 500, 1000 ? platinum, alpha=385 100, 200, 500, 1000 ? platinum, alpha=3916 120 ? nickel, alpha=672 100, 120, 200, 500 ? nickel, alpha=618 10 ? copper 427 for RTD; +,- 100 mV millivolt and input and Thermocouple type B, C, D, E, J, K, L (TXK,XK), N, R, S, T sensors.
This Allen Bradley 5069-IY4 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Analog input > Compact 5000 range and is referenced internally as PartLogic SKU PL26805527551.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | CompactLogix 5069 |
| Part Number | 5069-IY4 |
| UPC | 885630530147 |
| Weight | 0.31 lbs (0.14 kg) |
| Input Voltage Range | +/- 10 Volts, 0-10 Volts, 0-5 Volts |
| Number of Inputs | 4 Differential Inputs |
| Module Type | Compact 5000 Analog Input module |
| Resistance input | 1-500 ?, 2-1000 ?, 4-2000 ? and 8-4000 ? |
| milivolt input | +/- 100 mV millivolt |
| Thermocouple input | Type B, C, D, E, J, K, L (TXK/XK), N, R, S, T sensors |
| RTD input | 100, 200, 500, 1000 ? platinum, alpha=385; 100, 200, 500, 1000 ? platinum, alpha=3916; 120 ? nickel, alpha=672 100, 120, 200, 500 ? nickel, alpha=618; 10 ? copper 427 for RTD; |
| Module conversion method | Sigma-Delta,One 24-bit multiplexed ADC |
| Calibrated accuracy at 25 °C | Voltage 0.100% full scale Current 0.100% full scale RTD 0.100% full scale Thermocouple/millivolt 0.100% full scale |
| Accuracy drift with temperature | Voltage 0.200% full scale Current 0.300% full scale RTD 0.200% full scale Thermocouple/millivolt 0.200% full scale |
| Scan time, per channel | 625 µs |
| Scan time, per group | 2.5 ms |
| Number of Outputs | N/A |
| Voltage Category | N/A |
| Output Voltage Range | N/A |
| Power Dissipation | 1.8 W Voltage Mode, 2.1 W Current Mode, 2.1 W RTD Mode, and 1.8 W Thermocouple/Milivolt Mode |
| Enclosure Type | None (Open Style) |
| Pulse Latching Supported | Yes |
| Pattern Matching Supported | Yes |
| Brand | Allen Bradley |
