Allen Bradley 5069-IF8

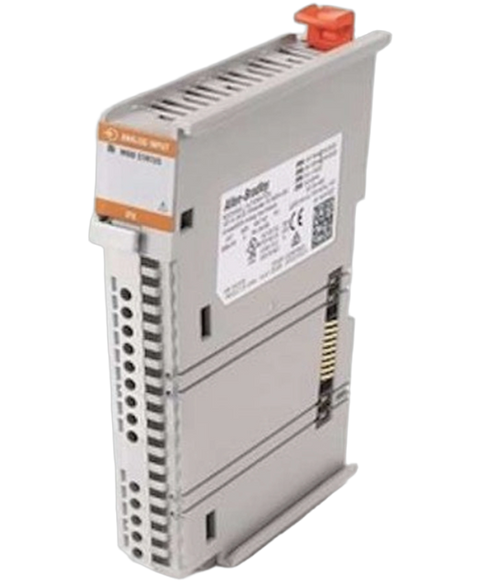

The Allen-Bradley 5069-IF8 is a Compact 5000 analog input module. This module features Eight (8) differential analog input channels, configurable for Voltage and Current signals. It accepts Voltage signal ranges of ±10V; 0-10V and 0-5VDC and Input current range of 0-20 mA and 4-20 mA. This module uses Sigma-Delta conversion method, Two 24-bit multiplexed ADC.
This Allen Bradley 5069-IF8 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Analog input > Compact 5000 range and is referenced internally as PartLogic SKU PL26805672632.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | CompactLogix 5069 |
| Part Number | 5069-IF8 |
| UPC | 885630530062 |
| Weight | 0.56 lbs (0.26 kg) |
| Module Type | Analog input module |
| Series | Compact 5000 I/O |
| No. of Inputs | Eight (8) differential inputs |
| Compatible Voltage signal | ±10VDC; 0-10VDC; 0-5VDC |
| Compatible Current signal | 0-20 mA and 4-20 mA |
| Conversion method | Sigma-Delta conversion method, Two 24-bit multiplexed ADC |
| Input notch filter (Hz) selections | 5, 10 (50/60 Default), 15, 20, 50, 60, 100, 200, 500, 1000, 2500, 5000, 10000, 15625, 25000, 31250, 62500 |
| HART handheld compliance | Add an external 250 ? resistor into the current loop for HART transmitter compliance. |
| Overvoltage protection, max | ± 30V DC |
| Overcurrent protection, max | ±30 mA |
| Open circuit detection time | 2 seconds |
| Module Keying | Electronic |
| Number of Inputs | 8 Differential Inputs |
| Number of Outputs | N/A |
| Voltage Category | N/A |
| Input Voltage Range | +/- 10 Volts, 0-10 Volts, 0-5 Volts |
| Output Voltage Range | N/A |
| Power Dissipation | 2.1 Voltage Mode and 2.4 Current Mode |
| Enclosure Type | None (Open Style) |
| Pulse Latching Supported | Yes |
| Pattern Matching Supported | Yes |
| Brand | Allen Bradley |
