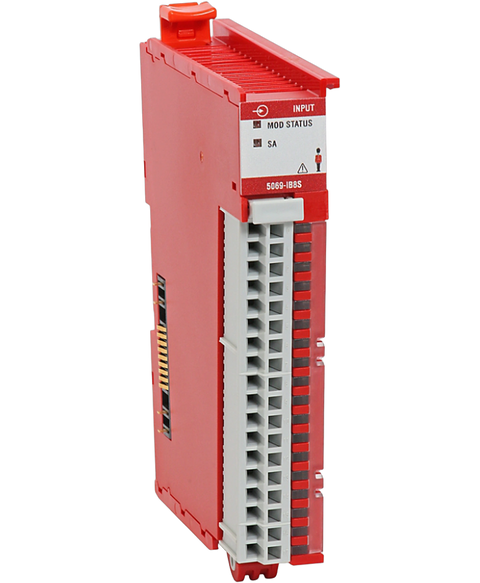

Allen Bradley 5069-IB8S
The Allen-Bradley 5069-IB8S is a Compact 5000 Safety sinking input module. This module features Eight (8) input channels, accepting signal voltage range of 18-32VDC. It also has Two (2) test output channels and Two (2) test output,muting output channels. This module is suitable for applications that are rated up to and including Category 3 Safety Integrity Level (SIL).
This Allen Bradley 5069-IB8S is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Digital input > Safety > Compact 5000 range and is referenced internally as PartLogic SKU PL26935556456.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | CompactLogix 5069 |
| Part Number | 5069-IB8S |
| UPC | 885630551098 |
| Weight | 0.50 lbs (0.23 kg) |
| Series | Compact 5000 I/O |
| No. of Inputs | Eight (8) sinking inputs |
| Input Voltage | 24 VDC |
| Operating Voltage Range | 10-32VDC |
| No. of outputs | Two (2) test outputs Two (2) Test outputs / muting output channels |
| Max. Current per channel | 0.3 A |
| Max. output per group | 1.2 A |
| Module Keying | Electronic |
| Input Rating | 2.5 mA per channel |
| Test Output Rating | 200 mA per channel |
| MOD Power | 75 mA @ 18…32V DC |
| MOD Power passthrough, max | 5 A @ 18…32V DC |
| SA Power | 100 mA @ 79…264V AC |
| SA Power Passthrough, max | 5 A @ 79…264V AC |
| Safety application | Up to and including SIL CAT 3, PLe CAT 4 |
| Type | Safety input module |
| Input type | 8-point safety sinking input |
| Voltage type | DC |
| Isolation voltage | 250 Volts |
| Location | Local, besides the controller |
| Orientation | Horizontal or Vertical |
| Structure | Red |
| Compatibility | CompactLogix 5380, 5480 or Compact GuardLogix controllers |
| Protection | Yes. Passcodes or block through Ethernet configuration. |
| Brand | Allen Bradley |
