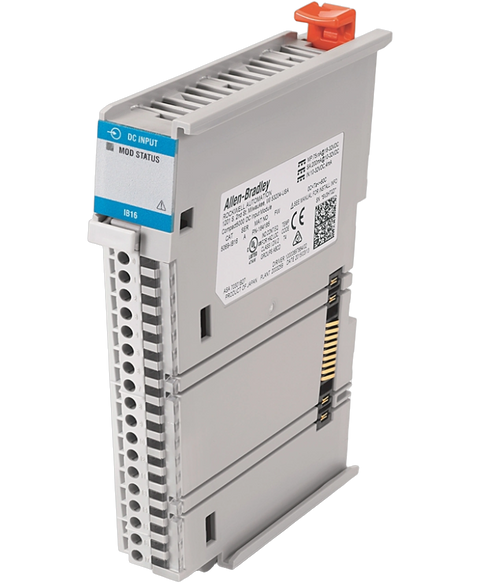

Allen Bradley 5069-IB16
The Allen-Bradley 5069-IB16 is a Compact 5000 Discrete input module. This is an DC input module which features Sixteen (16) sinking input channels, accepting signal voltage range of 10-32VDC in single group of input channels. It has an input current range of 4-7.4 mA per channel @ 10-32VDC. This module requires an RTB to terminate signals where compatible RTBs include 5069-RTB18-SPRING RTB and 5069-RTB18-SCREW RTB.
This Allen Bradley 5069-IB16 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Digital input > Compact 5000 range and is referenced internally as PartLogic SKU PL26805591987.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | CompactLogix 5069 |
| Part Number | 5069-IB16 |
| UPC | 885630530031 |
| Weight | 0.31 lbs (0.14 kg) |
| Module Type | Digital DC Input Module |
| Series | Compact 5000 I/O |
| No. of Inputs | Sixteen (16) Inputs |
| Input Voltage | 12/24 VDC |
| Operating Voltage Range | 10-32VDC |
| Module Keying | Electronic |
| Input Delay Time, OFF to ON | 50 µs + filter time |
| Power Dissipation (Max) | 3.9 W |
| MOD Power | 75 mA @ 18…32V DC |
| MOD Power passthrough, max | 9.55 A @ 18…32V DC |
| SA Power | 200 mA @ 79…264V AC |
| SA Power Passthrough, max | 9.95 A @ 79…264V AC |
| Thermal Dissipation | 13.3 BTU/hr |
| Removable Terminal Block(s) | 5069-RTB18-SPRING RTB; 5069-RTB18-SCREW RTB |
| Number of Inputs | 1 Group of 16 Channels (Sinking) |
| Number of Outputs | N/A |
| Voltage Category | 12/24 Volts DC Sink |
| Input Voltage Range | 10-32 Volts DC |
| Output Voltage Range | N/A |
| Power Dissipation | 3.9 Watts |
| Enclosure Type | None (Open Style) |
| Brand | Allen Bradley |
