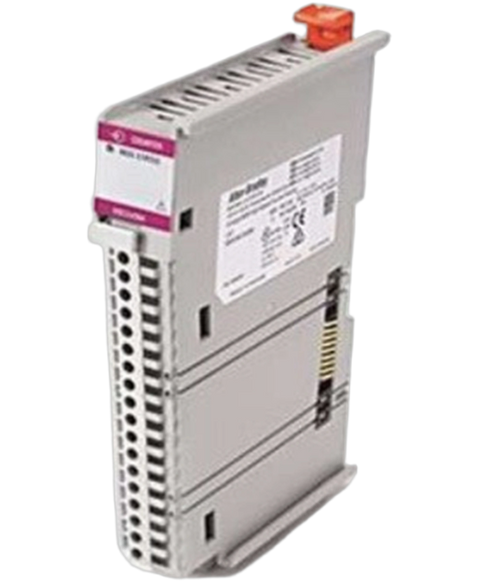

Allen Bradley 5069-HSC2XOB4
The Allen-Bradley 5069-HSC2XOB4 is a Compact 5000 I,O High-Speed counter module. This module features Two (2) quadrature (ABZ) differential inputs and Four (4) sourcing output channels in single group, operating in 12,24VDC voltage category. This module may be connected to Single-ended Encoder, Differential Encoder and Discrete input devices.
This Allen Bradley 5069-HSC2XOB4 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Specialty > Compact 5000 range and is referenced internally as PartLogic SKU PL26931439151.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | CompactLogix 5069 |
| Part Number | 5069-HSC2XOB4 |
| UPC | 885630530024 |
| Weight | 0.56 lbs (0.26 kg) |
| Enclosure Type | None (Open Style) |
| Voltage Category | 12/24VDC |
| Module Type | High Speed Counter Module |
| No. of Inputs | Two (2)Differential (ABZ) input |
| No. of outputs | Four (4) sourcing outputs channels |
| No. of output groups | One (1) group |
| MOD Power | 50 mA @ 18…32V DC |
| MOD Power Passthrough | 9.55 A @ 18…32V DC |
| SA Power | 3 A @ 18…32V DC |
| SA Power (Passthrough) | 9.95 A @ 10…32V DC |
| Operating Temperature | 0…60 °C (32…140 °F) |
| Maximum surrounding air temperature | 60 °C (140 °F) |
| Installation | DIN Rail |
| Compatible DIN Rail | EN50022 - 35 x 7.5 mm (1.38 x 0.30 in.) |
| Slot Width | Single Slot |
| Number of Inputs | 2 Quadrature (ABZ) Differential Inputs |
| Number of Outputs | 1 Group of 4 (Sourcing) Outputs |
| Input Voltage Range | 3-32 Volts DC |
| Output Voltage Range | N/A |
| Power Dissipation | 3 Watts |
| Brand | Allen Bradley |
