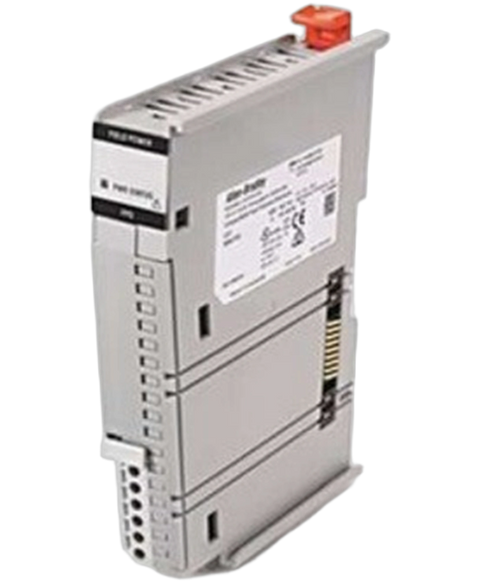

Allen Bradley 5069-FPD
The Allen-Bradley 5069-FPD is a Compact 5000 I,O Field Potential Distributor. This module breaks the SA power on the left side and produce a new and isolated SA Power to the right side. This module has MOD Passthrough rating of 9.55 A @ 18-32V DC; SA Power of 10 mA @ 0-32V DC 25 mA @ 0-240V AC, 47-63 Hz ATEX,IECEX, 125V AC, max and SA Power Passthrough of 9.99 A @ 0-32V DC 9.975 A @ 0-240V AC, 47-63 Hz ATEX,IECEX, 125V AC, max.
This Allen Bradley 5069-FPD is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Compact 5000 range and is referenced internally as PartLogic SKU PL26944728907.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | PLCs |
| Product Line | CompactLogix 5069 |
| Part Number | 5069-FPD |
| UPC | 885630530000 |
| Weight | 0.31 lbs (0.14 kg) |
| Enclosure Type | None (Open Style) |
| Module Type | Field Potential Distributor (FPD) |
| MOD Power | 955 mA @ 18…32V DC |
| SA Power | 10 mA @ 0…32V DC; 25 mA @ 0…240V AC, 47…63 Hz ATEX/IECEX, 125V AC, max |
| SA Power (Passthrough) | 9.95 A @ 0…32V DC 9.975 A @ 0…240V AC, 47…63 Hz ATEX/IECEX, 125V AC, max |
| Operating Temperature | 0…60 °C (32…140 °F) |
| Maximum surrounding air temperature | 60 °C (140 °F) |
| Installation | DIN Rail |
| Compatible DIN Rail | EN50022 - 35 x 7.5 mm (1.38 x 0.30 in.) |
| Slot Width | Single Slot |
| Number of Inputs | N/A |
| Number of Outputs | N/A |
| Voltage Category | N/A |
| Input Voltage Range | N/A |
| Output Voltage Range | N/A |
| Power Dissipation | 4.0 Watts |
| Brand | Allen Bradley |
