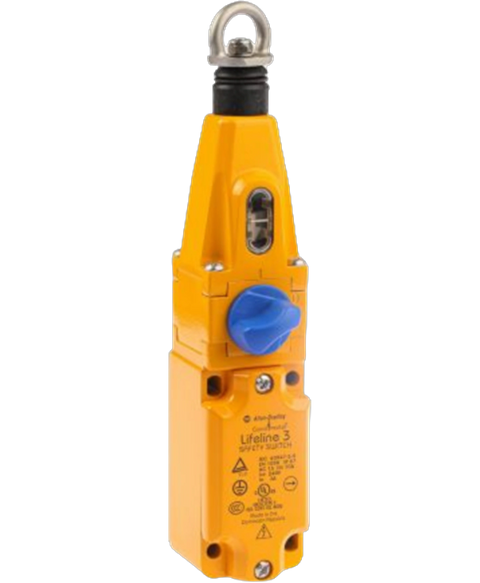

Allen Bradley 440E-D13118
The 440E-D13118 is a Guardmaster Lifeline 3 Cable Pull switch by Allen-Bradley. This is an emergency stop device that complies with ISO 13850, EN ISO 12100, IEC 60947-5-1, IEC 60947-5-5 standards. It is a Cat. 1 device per EN 954-1 which may also be used in Cat. 3 and Cat. 4 systems. This cable pull switch has built-in Two (2) Normally Closed (N.C.) Safety contacts and Two (2) Normally Open (N.O.) auxiliary contacts. This device has an IP67 enclosure rating with an operating temperature of -25 to 80 Degrees Celsius.
This Allen Bradley 440E-D13118 is supplied brand new by PartLogic for machine guarding, safety circuits, operator protection, production equipment and industrial compliance applications. It forms part of our Industrial automation > Safety > Guardmaster range and is referenced internally as PartLogic SKU PL26805559212.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | Cable Pull Switch |
| Product Line | Lifeline 3 Cable Pull Switches |
| Part Number | 440E-D13118 |
| UPC | 781180024023 |
| Weight | 1.75 lbs (0.79 kg) |
| Product Family | Lifeline 3 |
| Type of Component | M20 Conduit |
| Safety Contacts | 3 N.C., 1 N.O. |
| Thermal Current | 10 Amperes |
| Product Description | Cable / Rope operated emergency stop device |
| Minimum Current | 5 mA |
| Safety Standard | ISO 13850, EN ISO 12100, IEC 60947-5-1, IEC 60947-5-5 standards |
| Pollution Degree | 3 |
| Safety classification | Cat. 1 device per EN 954-1 which may also be used in Cat. 3 and Cat. 4 systems depending on the architecture and application characteristics of the system |
| Case Material | Heavy-Duty Diecast Aluminum Alloy (LM24) |
| Eye Nut material | Stainless Steel |
| Auxiliary contacts | Two (2) Normally Open (N.O.) |
| Indicator Material | Glass-Filled Nylon |
| Minimum switching current | 5 mA at 5 VDC |
| Protection Rating | IP 67 |
| Cable Span Between Switches, Max. | 30 m (98 ft) |
| Tensioning Force to Run Position | 103 N (23.17 lbf), typical |
| Tensioning Force to Lockout | 188 N (42.3 lbf), typical |
| Operating Force, Min. | \u003C125 N (28.1 lb) at 300 mm deflection |
| Actuation Frequency, Max. | 1 cycle/s |
| Operating Life @ 100 mA load | 1 x 106 |
| Brand | Allen Bradley |
