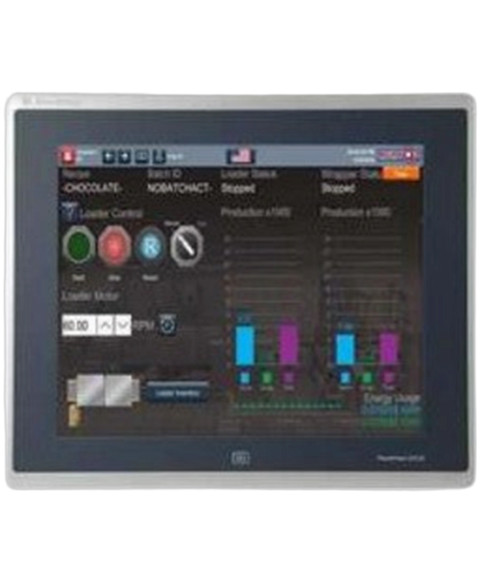

Allen Bradley 2715P-T19CD
The 2715P-T19CD is part of the PanelView 5510 terminals by Allen-Bradley. It has a 19-inch Color TFT LCD, functioning as Human Machine Interface (HMI) device. This terminal operates at an input supply voltage of 18-30 VDC, 24 VDC nominal input, and comes with a touchscreen interface plus menu navigation buttons. For real-time I,O and data communication, this PanelView terminal has Two (2) Ethernet communication ports, Two (2) USB hosts, and One (1) USB device port.
This Allen Bradley 2715P-T19CD is supplied brand new by PartLogic for machine control, process visibility, operator input, production monitoring and industrial automation applications. It forms part of our Industrial automation > Hmi > Panelview component range and is referenced internally as PartLogic SKU PL26944652890.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | Operator Terminals |
| Product Line | Panelview 5500 |
| Part Number | 2715P-T19CD |
| Weight | 12.00 lbs (5.44 kg) |
| Product Family | PanelView 5510 |
| Desription | PanelView 5510 Terminal |
| Input Type | Touchscreen / Keypad |
| Display Size | 19.0 Inches |
| Display Type | Color TFT LCD |
| Display Color | Color |
| Input interfaces | Touch |
| Display Area | 376 x 301 mm (14.8 x 11.9 in.) |
| Resolution | 1280 x 1024 SXGA |
| Operating Voltage | 18 to 30 Volts DC |
| Display screen | 19 inches |
| Application memory | 1 GB RAM 1 GB Non-volatile memory |
| Communication ports | Two (2) Ethernet ports |
| Memory | 1 Gigabyte RAM/Non-volatile |
| Aspect ratio | 5:04 |
| USB Port | Two (2) Host ports; One (1) Device Port |
| Communication | 2 Ethernet/IP Ports |
| Color Depth | 24-bit color graphics (16.7 million colors) |
| External storage | One (1) Secure Digital (SD) card slot |
| Backlight | LED; non-replaceable; 50,000 hr, minimum |
| Communication interface | Dual Ethernet; USB |
| Compatible controllers | ControlLogix L7 or L8 controllers, and CompactLogix L1, L2, or L3 |
| Input Voltage range | 18-30 VDC |
| Enclosure | NEMA and UL Type 12, 13, 4X (indoor use only), also rated IP66 as Classified by UL |
| Status indicators | STS (status, green), ERR (error, red) |
| Brand | Allen Bradley |
