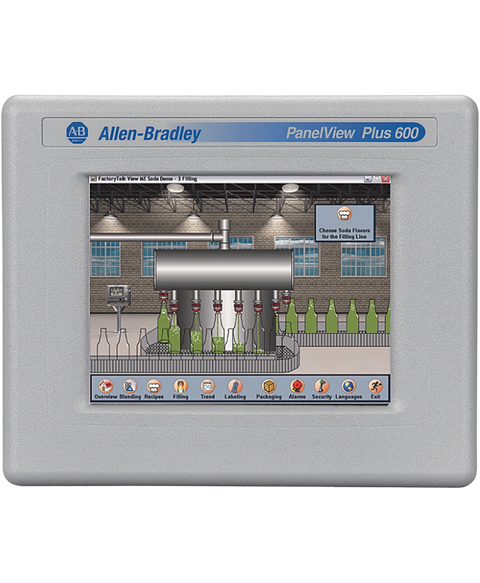

Allen Bradley 2711PC-T6C20D8
The Allen-Bradley 2711PC-T6C20D8 is a Panelview Plus 6 600 Operator Terminal. This operator terminal is powered by an external 18-32VDC supply voltage and has a 5.7-inch colored display with embedded Ethernet, RS-232 and Two (2) USB ports. This operator terminal has a keypad and touchscreen input interface.
This Allen Bradley 2711PC-T6C20D8 is supplied brand new by PartLogic for machine control, process visibility, operator input, production monitoring and industrial automation applications. It forms part of our Industrial automation > Hmi > Panelview plus range and is referenced internally as PartLogic SKU PL26935682884.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | PanelView Plus 6 600 Compact Terminals |
| Product Line | Panelview Plus 6 Compact |
| Part Number | 2711PC-T6C20D8 |
| UPC | 884951344471 |
| Weight | 1.00 lbs (0.45 kg) |
| Display Size | 5.7 in. |
| Product Family | PanelView Plus 6 Compact Terminals |
| Operator Input | Touch |
| Display Type | Color active-matrix TFT |
| Lifecycle status | End of life |
| Backlight | White LED, not replaceable; 25,000 hours min at 25 °C (77 °F) |
| Display Area | 115 x 86 mm (4.5 x 3.4 in.) |
| Resolution | 320 x 240, 18-bit color |
| Touch | Analog Resistive |
| Internal memory | 256 MB RAM, 512 MB nonvolatile memory (approx. 79 MB free user memory) |
| Integrated ports | Ethernet, RS-232, 2 USB host |
| Input Voltage range | 18-32VDC |
| Display Color | Color |
| Input Type | Touchscreen |
| Communication | Ethernet and RS-232 |
| Input Power | 24 Volts DC |
| Memory | 512 MB nonvolatile memory and 256 MB RAM |
| Enclosure Type | NEMA/UL Type 12, 13, 4X (indoor use only), and IEC IP66 |
| USB Ports | Host and Device |
| Brand | Allen Bradley |
