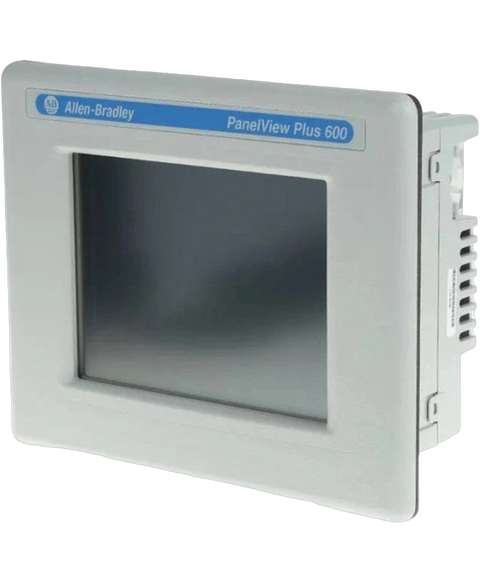

Allen Bradley 2711P-T6M3D
The Allen-Bradley 2711P-T6M3D is a PanelView Plus 600 operator terminal. This operator terminal is powered by an external voltage supply range of 18-32VDC. It comes with a Touch input interface, 5.5-inch monochrome display with RS232, Ethernet and DH485 communication ports.
This Allen Bradley 2711P-T6M3D is supplied brand new by PartLogic for machine control, process visibility, operator input, production monitoring and industrial automation applications. It forms part of our Industrial automation > Hmi > Panelview plus range and is referenced internally as PartLogic SKU PL26970496641.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Panelviews |
| Product Line | Panelview Plus 600 |
| Part Number | 2711P-T6M3D |
| UPC | 781180130250 |
| Weight | 0.25 lbs (0.11 kg) |
| Product Family | PanelView Plus Graphic Terminals |
| Operator Input | Touch |
| Display Type | Grayscale passive matrix, film compensated super-twist nematic (FSTN) |
| Display Size | 5.5 inches |
| Display Area | 111 x 84 mm (4.37 x 3.30 in) |
| Resolution | 320 x 240 |
| Backlight | CCFL 50,000 hours life, minimum |
| System Memory | 5MB |
| Communication ports | RS-232, Ethernet, DH485, 1 USB host |
| Input Voltage range | 18 to 32VDC; |
| Nominal Supply Voltage | 24VDC |
| Power Consumption | 25 Watts maximum (1.0 A at 24V dc) |
| Product Lifecycle | Obsolete |
| Module Type | Operator Interface Terminal |
| Input Type | Touchscreen |
| Power Supply | 24 Volts DC |
| Communication | RS-232, USB, Ethernet, DH-486 |
| Display | 5.7-inch Monochrome |
| Product Lifecycle Status* | Discontinued/Obsolete |
| Brand | Allen Bradley |
