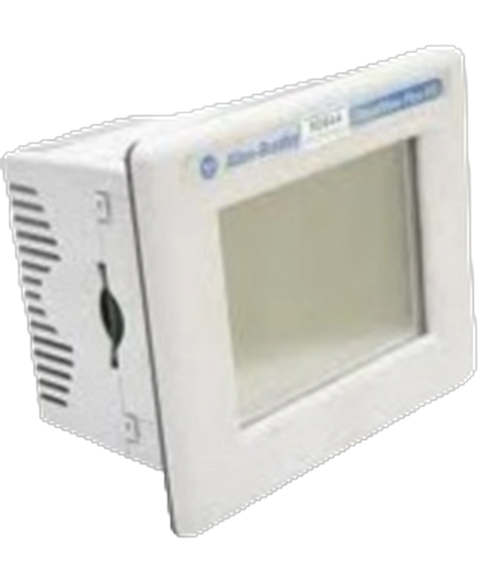

Allen Bradley 2711P-T6M20D
The 2711P-T6M20D is a graphic operator terminal from Allen-Bradley. It is part of the PanelView Plus 600 operator terminal. It is a Human Machine Interface (HMI) device that is powered by an external supply voltage range of 18-30VDC with 5.5-inch Grayscale passive matrix, film compensated super-twist nematic (FSTN) display. It has an embedded Touchscreen operator interface and provided with multiple communication interfaces such as, One (1) Ethernet, One (1) RS-232 and Two (2) USB ports.
This Allen Bradley 2711P-T6M20D is supplied brand new by PartLogic for machine control, process visibility, operator input, production monitoring and industrial automation applications. It forms part of our Industrial automation > Hmi > Panelview plus range and is referenced internally as PartLogic SKU PL26970175893.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Panelviews |
| Product Line | Panelview Plus 600 |
| Part Number | 2711P-T6M20D |
| UPC | 781180130243 |
| Weight | 2.06 lbs (0.94 kg) |
| Product Family | PanelView Plus Graphic Terminals |
| Operator Input | Touch |
| Display Type | Grayscale passive matrix, film compensated super-twist nematic (FSTN) |
| Display Size | 5.5 in. |
| Display Area | 112 x 84 mm (4.4 x 3.3 in.) |
| Resolution | 320 x 240 |
| Touch interface | Analog resistive |
| Operating force | 10…110 g |
| Actuating lifespan | 1 million presses |
| Terminal Memory | Series A: 5 MB Series B: 10 MB |
| Communication ports | Ethernet, RS-232, 2 USB host |
| Power Supply Input Voltage range | 18-30VDC |
| Power Consumption | 25 W max (1.0 A at 24V DC) |
| Module Type | Operator Interface Terminal |
| Input Type | Touchscreen |
| Power Supply | 24 Volts DC |
| Communication | RS-232, USB, 2 Ethernet ports |
| Display | 5.7-inch Monochrome |
| Open Architecture | Yes |
| Product Lifecycle Status* | Discontinued/Obsolete |
| Brand | Allen Bradley |
