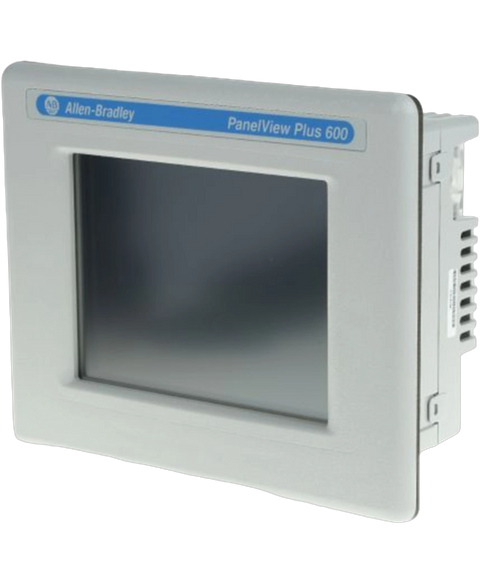

Allen Bradley 2711P-T6C5D8
The Allen-Bradley 2711P-T6C5D8 is a Panelview Plus 6 600 Operator Terminal. This operator terminal is powered by an external 18-30VDC supply voltage and has a 5.7-inch colored display with embedded RS-232 and Two (2) USB ports. This operator terminal has touchscreen input interface.
This Allen Bradley 2711P-T6C5D8 is supplied brand new by PartLogic for machine control, process visibility, operator input, production monitoring and industrial automation applications. It forms part of our Industrial automation > Hmi > Panelview plus range and is referenced internally as PartLogic SKU PL26988028087.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | PanelView Plus 6 600 Operator Terminals |
| Product Line | Panelview Plus 6 |
| Part Number | 2711P-T6C5D8 |
| UPC | 884951344273 |
| Weight | 2.44 lbs (1.11 kg) |
| Backlight | White LED, not replaceable; 25,000 hours min at 25 °C (77 °F) |
| Display Size | 5.7 in. |
| Product Family | PanelView Plus 6 Operator Terminals |
| Operator Input | Touch |
| Display Type | Color active-matrix TFT |
| Lifecycle status | End of life |
| Display Area | 115 x 86 mm (4.5 x 3.4 in.) |
| Resolution | 320 x 240, 18-bit color |
| Touch | Analog Resistive |
| Internal memory | 256 MB RAM, 512 MB nonvolatile memory (approx. 79 MB free user memory) |
| Integrated ports | One (1) RS-232, Two (2) USB |
| Input Voltage range | 18-30VDC |
| Display Color | Color |
| Input Type | Touchscreen |
| Communication | RS-232 |
| Input Power | 18-30 VDC |
| Memory | 256 MB RAM |
| Communication Cable | 2711-NC13 |
| Series | Series A and Series B |
| Brand | Allen Bradley |
