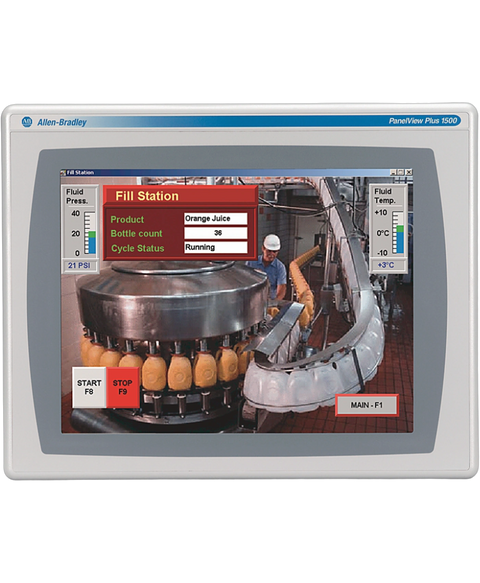

Allen Bradley 2711P-T15C4D8
The Allen-Bradley 2711P-T15C4D8 is a Panelview Plus 6 1500 Operator Terminal. This operator terminal is powered by an external 18-30VDC supply voltage and has a 15.0-inch colored display with embedded Ethernet, RS232, and Two (2) USB communication port. This operator terminal has a touchscreen input interface.
This Allen Bradley 2711P-T15C4D8 is supplied brand new by PartLogic for machine control, process visibility, operator input, production monitoring and industrial automation applications. It forms part of our Industrial automation > Hmi > Panelview plus range and is referenced internally as PartLogic SKU PL26966656808.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | PanelView Plus 6 1500 Operator Terminals |
| Product Line | Panelview Plus 6 |
| Part Number | 2711P-T15C4D8 |
| UPC | 612598876785 |
| Weight | 7.00 lbs (3.18 kg) |
| Backlight | CCFL, 50,000 hours min at 25 ° C (77 °F), field replaceable |
| Display Type | Color active-matrix TFT |
| Display Size | 15.0 inches |
| Product Family | PanelView Plus 6 Operator Terminals |
| Operator Input | Touch |
| Lifecycle status | End of life |
| Display Area | 304 x 228 mm (12.0 x 9.0 in.) |
| Resolution | 1024 x 768, 18-bit color graphics |
| Touch | 1 million presses |
| Internal memory | 512MB Flash Memory / 512 MB Random Access Memory |
| Integrated ports | Ethernet, RS-232, 2 USB host |
| Input Voltage range | 18-30VDC |
| Input Type | Touchscreen |
| Communication | Ethernet and RS-232 ports |
| Input Power | 18 to 32 Volts DC |
| Memory | 512 MB RAM |
| Communication Cable | 2711-NC13 |
| Series | Series A and Series B |
| Enclosure Rating | NEMA/UL Type 12,13, 4X and IEC IP54, IP65 |
| Display Module | 2711P-RDT15C |
| Logic Module | 2711P-RP8D |
| Mounting Hardware | 2711P-RTMC |
| Brand | Allen Bradley |
