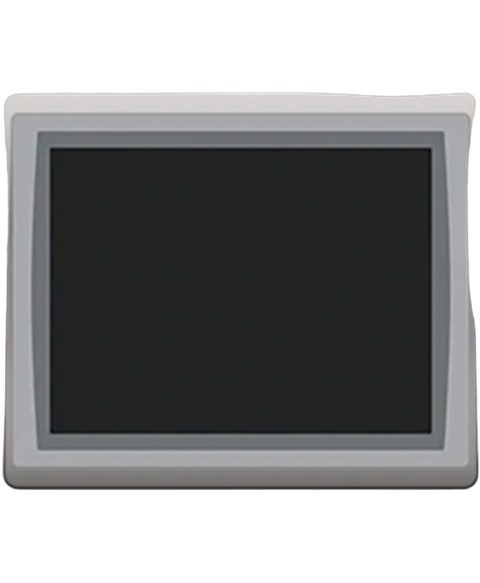

Allen Bradley 2711P-T15C22D8S
The Allen-Bradley 2711P-T15C22D8S is a PanelView Plus 7 Standard operator terminal. This Human Machine Interface (HMI) device is powered by an external supply voltage of 18-30VDC. It has a 15-inch Color active matrix, thin-film transistor (TFT) LCD with embedded Touchscreen operator interface. It has a variety of communication ports such as, Two (2) Ethernet and Two (2) USB ports.
This Allen Bradley 2711P-T15C22D8S is supplied brand new by PartLogic for machine control, process visibility, operator input, production monitoring and industrial automation applications. It forms part of our Industrial automation > Hmi > Panelview plus range and is referenced internally as PartLogic SKU PL26939509400.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Panelviews |
| Product Line | Panelview Plus 7 |
| Part Number | 2711P-T15C22D8S |
| UPC | 885630920474 |
| Weight | 7.00 lbs (3.18 kg) |
| Display Size | 15 in. |
| Product Family | PanelView Plus 7 Standard terminals |
| Operator Input | Touch |
| Display Type | Color active-matrix TFT |
| Display Area | 304 x 228 mm |
| Resolution | 1024 x 768 XGA, 18-bit color graphics |
| Touch | Analog resistive Actuation: 1 million presses; operating force: 100 g |
| System Memory | 512 RAM, 512 MB nonvolatile memory (approx. 80 MB free user memory) |
| Communication ports | Two (2) Ethernet, Two (2) USB host |
| Input Voltage range | 18-30 VDC |
| Power Consumption | 50 W max (2.1 A at 24V DC) |
| Backlight | White light-emitting diode, solid state Life: 50,000 h min at 40 °C (104 °F) to half-brightness, backlight is not replaceable |
| Input Type | Touchscreen |
| Display Color | TFT Color Display |
| Memory | 512 Mb |
| Input Voltage | 24 VDC |
| Brand | Allen Bradley |
