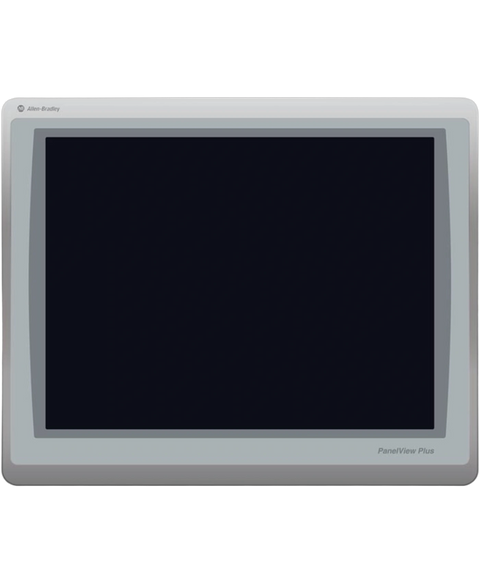

Allen Bradley 2711P-T15C22A9P
The Allen-Bradley 2711P-T15C22A9P is a PanelView Plus 7 Performance operator terminal. This Human Machine Interface (HMI) device is powered by an external supply voltage of 100-240VAC. It has a 15-inch Color active matrix, thin-film transistor (TFT) LCD screen with embedded Touchscreen operator interface. It has a variety of communication ports such as, Two (2) Ethernet and Three (3) USB ports.
This Allen Bradley 2711P-T15C22A9P is supplied brand new by PartLogic for machine control, process visibility, operator input, production monitoring and industrial automation applications. It forms part of our Industrial automation > Hmi > Panelview plus range and is referenced internally as PartLogic SKU PL26941143709.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | PanelView Plus 7 15-inch Performance Terminals |
| Product Line | Panelview Plus 7 |
| Part Number | 2711P-T15C22A9P |
| UPC | 885630844725 |
| Weight | 6.00 lbs (2.72 kg) |
| Display Size | 15 in. |
| Product Family | PanelView Plus 7 Performance terminals |
| Operator Input | Touch |
| Touch screen | Analog resistive touchscreen |
| Actuation rating | 1 million presses |
| Operating force | 100 grams |
| Display Type | Color active-matrix TFT |
| Display Area | 304 x 228 mm (12.0 x 9.0 in.) |
| Resolution | 1024 x 768 XGA, 18-bit color graphics |
| Backlight | White light-emitting diode, solid state Life: 50,000 h min at 40 °C (104 °F) to half-brightness, backlight is not replaceable |
| Application memory | 1GB system; User memory 512 MB |
| Communication ports | Two (2) Ethernet, Three (3) USB host |
| Touch | Analog resistive Actuation: 1 million presses; operating force: 100 g |
| System Memory | 512 RAM, 512 MB nonvolatile memory (approx. 80 MB free user memory) |
| Power Consumption | 105VA |
| Input Type | Touchscreen |
| Display Color | Color |
| Memory | 512 Mb |
| Input Voltage | 100-240VAC |
| Brand | Allen Bradley |
