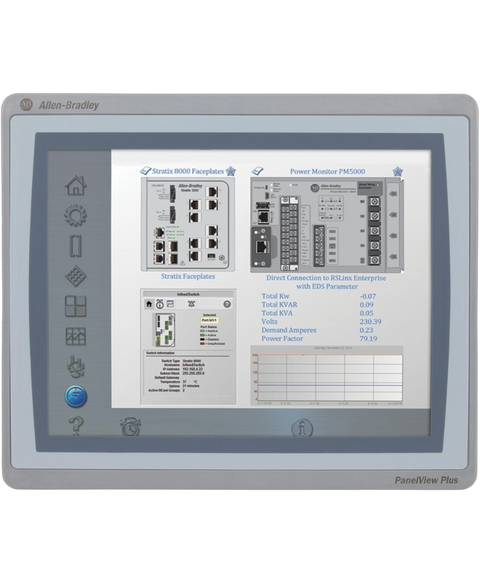

Allen Bradley 2711P-T15C21D8S
The Allen-Bradley 2711P-T15C21D8S terminal is a PanelView Plus 7 series terminal. It is a standard type of PanelView Plus 7 terminal that can display application data. The 2711P-T15C21D8S terminal’s screen is 15 inches wide with color graphics. It operates with DC power. The 2711P-T15C21D8S terminal comes with 512 MB of RAM and with 512 MB of non-volatile memory.
This Allen Bradley 2711P-T15C21D8S is supplied brand new by PartLogic for machine control, process visibility, operator input, production monitoring and industrial automation applications. It forms part of our Industrial automation > Hmi > Panelview plus range and is referenced internally as PartLogic SKU PL26805640613.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Panelviews |
| Product Line | Panelview Plus 7 |
| Part Number | 2711P-T15C21D8S |
| UPC | 887172715440 |
| Weight | 5.00 lbs (2.27 kg) |
| Display Size | 15 in. |
| Product Family | PanelView Plus 7 Standard terminals |
| Operator Input | Touch |
| Display Type | Color active-matrix TFT |
| Display Area | 304 x 228 mm |
| Resolution | 1024 x 768 XGA, 18-bit color graphics |
| Touch | Analog resistive Actuation: 1 million presses; operating force: 100 g |
| System Memory | 512 RAM, 512 MB nonvolatile memory (approx. 80 MB free user memory) |
| Communication ports | One (1) Ethernet, Two (2) USB host |
| Input Voltage range | 18-30 VDC |
| Power Consumption | 50 W max (2.1 A at 24V DC) |
| Backlight | White light-emitting diode, solid state Life: 50,000 h min at 40 °C (104 °F) to half-brightness, backlight is not replaceable |
| Input Type | Touchscreen |
| Display Color | TFT Color Display |
| Memory | 512 Mb |
| Input Voltage | 24 VDC |
| Brand | Allen Bradley |
