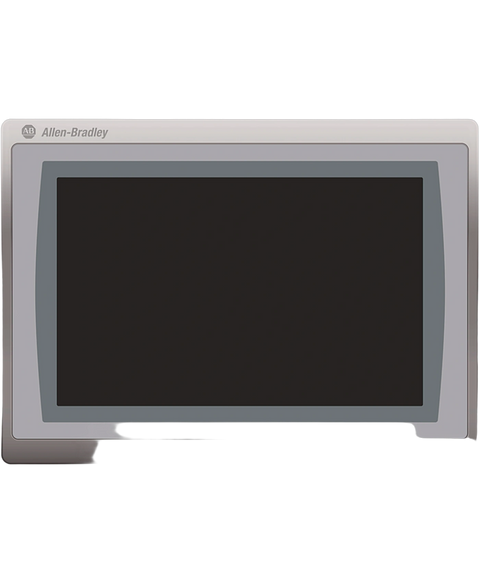

Allen Bradley 2711P-T12C4D9
The 2711P-T12C4D9 terminal is an Allen-Bradley,Rockwell Automation Panelview Plus 6 series operator terminal that has extended features. It is controlled by a touchscreen. The 2711P-T12C4D9 touchscreen terminal’s display screen measures 12.1 inches in diameter and it supports full color graphics. It can communicate with other devices through its Ethernet port and its RS-232 port. The 2711P-T12C4D9 touchscreen terminal operates with DC voltage, 512 MB of RAM, and 512 MB of non-volatile memory.
This Allen Bradley 2711P-T12C4D9 is supplied brand new by PartLogic for machine control, process visibility, operator input, production monitoring and industrial automation applications. It forms part of our Industrial automation > Hmi > Panelview plus range and is referenced internally as PartLogic SKU PL26933392921.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Panelviews |
| Product Line | Panelview Plus 6 |
| Part Number | 2711P-T12C4D9 |
| UPC | 885630004266 |
| Weight | 6.38 lbs (2.89 kg) |
| Display Size | 12.1 in. |
| Product Family | PanelView Plus 6 Graphic Terminals |
| Operator Input | Touch |
| Display Type | Color active-matrix TFT |
| Display Area | 246 x 184 mm (9.7 x 7.2 in.) |
| Resolution | 800 x 600, 18-bit color graphics |
| Touch interface | 8-wire analog resistive Actuation: 1 million presses; operating force: 10…110 g |
| Terminal Memory | 512 MB RAM, 512 MB nonvolatile memory (approx. 79 MB free user memory) |
| Battery (real-time clock) | Battery-backed clock timestamps critical data, accuracy is ±2 minutes per month Battery life: 4 year min at 25 °C (77 °F) Field-replaceable: cat. no. 2711P-RY2032 or equivalent CR2032 coin-cell lithium battery |
| Communication ports | Ethernet, RS-232, DH485, 2 USB host |
| Power Supply Input Voltage range | 18-32VDC |
| Power Consumption | 70 W max (2.9 A at 24V DC), 39 W typical (1.6 A at 24V DC) |
| Display Color | Color |
| Input Type | Touchscreen |
| Communication | Ethernet and RS-232 |
| Input Power | 18 to 32 Volts DC |
| Memory | 512 MB RAM |
| Backlight | 2711P-RL12C2 |
| Communication Cable | 2711-NC13 |
| Series | Series A and Series B |
| Brand | Allen Bradley |
