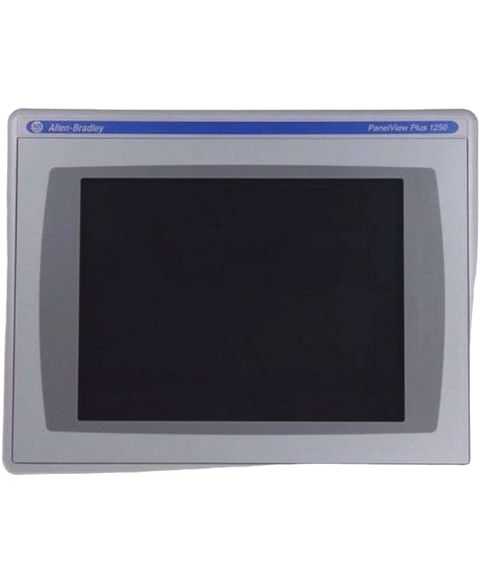

Allen Bradley 2711P-T12C4D2
The 2711P-T12C4D2 is a graphic operator terminal from Allen-Bradley. It is part of the PanelView Plus 600 operator terminal. It is a Human Machine Interface (HMI) device that is powered by an external supply voltage range of 18-30VDC with 12.1-inch Color active matrix, thin-film transistor (TFT) with liquid crystal display (LCD). It has an embedded Touchscreen operator interface and provided with multiple communication interfaces such as, One (1) Ethernet, One (1) RS-232 and Two (2) USB ports. This unit comes with a logic module with 128 MB Flash and 128 MB Random Access Memory (RAM).
This Allen Bradley 2711P-T12C4D2 is supplied brand new by PartLogic for machine control, process visibility, operator input, production monitoring and industrial automation applications. It forms part of our Industrial automation > Hmi > Panelview plus range and is referenced internally as PartLogic SKU PL26935468745.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | Operator Terminals |
| Product Line | Panelview Plus 1250 |
| Part Number | 2711P-T12C4D2 |
| UPC | 662073072201 |
| Weight | 7.00 lbs (3.18 kg) |
| Display Type | Active Matrix Thin-Film Resistor (TFT) with Cold Cathode Fluorescent (CCF) Backlight |
| Input Type | Touch |
| Display Size | 12.1-in. |
| Product Family | PanelView Plus Terminals |
| Display Area | 246 x 184 mm (9.7 x 7.2 in.) |
| Resolution | 800 x 600 |
| Touch interface | Analog resistive |
| Operating force | 10…110 g |
| Actuating lifespan | 1 million presses |
| Logic Module | 128 MB RAM; 128 MB non-volatile memory |
| Communication ports | Ethernet, RS-232, 2 USB host |
| Power Supply Input Voltage range | 18-32VDC |
| Power Consumption | 70 W max (2.9 A at 24V DC); 39 W typical (1.6A @ 24V DC) |
| Communication | Serial or Ethernet |
| Input Power | 18-32 Volts DC |
| Memory | 128 Megabytes |
| Product Lifecycle Status* | Discontinued/Obsolete |
| Brand | Allen Bradley |
