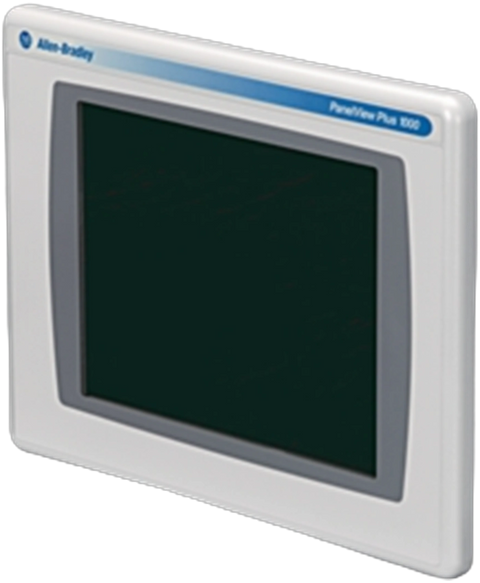

Allen Bradley 2711P-RDT10C
The 2711P-RDT10C Allen-Bradley Display Module is part of the Panelview Plus 1000 series with a 10.4-inch Color Display and Touchscreen. The 2711P-RDT10C is compatible with several Panelview Plus Logic Modules and communication modules that can be installed on the rear of this unit.
This Allen Bradley 2711P-RDT10C is supplied brand new by PartLogic for machine control, process visibility, operator input, production monitoring and industrial automation applications. It forms part of our Industrial automation > Hmi > Panelview plus range and is referenced internally as PartLogic SKU PL26940778895.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | Display Module |
| Product Line | Panelview Plus 1000 |
| Part Number | 2711P-RDT10C |
| GTIN | 10611320817109 |
| Weight | 4.00 lbs (1.81 kg) |
| Display Size | 10.4 inches |
| Display Type | Color active matrix, thin-film transistor (TFT) with liquid crystal display (LCD) |
| Product Family | PanelView Plus Graphic Terminals |
| Compatibility | PanelView Plus 1000 / PanelView Plus 6 Touch terminals |
| Display Area | 211 x 158 mm (8.31 x 6.22) |
| Resolution | 211 x 158 mm (8.31 x 6.22) Resolution: 640 x 480 |
| Display colors | 18-bit color graphics |
| Luminance | 300 cd/m2 (Nits)(3) |
| Input interface | Touch |
| Anti-Glare overlay | not included |
| Touch Input | 8-wire analog resistive |
| Touch interface lifespan | 1 Million actuations |
| Actuation force | 10-110 g |
| Series | Panelview Plus 1000 series |
| Input Type | Touchscreen |
| Power Consumption | 160 VA max |
| Graphics | 18-Bit |
| Enclosure | NEMA, UL or IP-rated |
| Input Voltage | 100 to 240 Volts AC |
| Communication Ports | RS-232 and Ethernet |
| UNSPSC | 43211902 |
| Brand | Allen Bradley |
