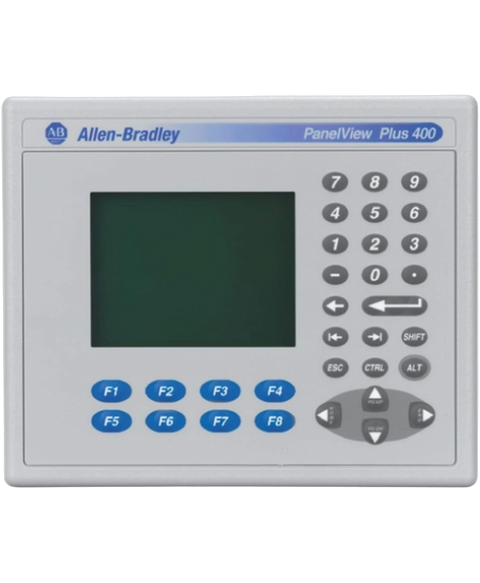

Allen Bradley 2711P-K4M5D
The 2711P-K4M5D is a PanelView Plus Operator terminal. It is part of the Visualization product catalog that is manufactured by Allen-Bradley. It functions as a Human Machine Interface (HMI), featuring a Grayscale display measuring 3.5 inches with a resolution of 320 x 240 pixels. It comes with a Keypad operator interface; RS232 communication port supporting DF1 protocol; USB ports for attachment of peripheral devices such as keyboard, mouse, and USB removable drive. This terminal operates at an input supply voltage of 18-30 VDC, 24 VDC, nominal.
This Allen Bradley 2711P-K4M5D is supplied brand new by PartLogic for machine control, process visibility, operator input, production monitoring and industrial automation applications. It forms part of our Industrial automation > Hmi > Panelview plus range and is referenced internally as PartLogic SKU PL26970115610.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | Operator Terminals |
| Product Line | Panelview Plus 400 |
| Part Number | 2711P-K4M5D |
| UPC | 781180130830 |
| Weight | 1.19 lbs (0.54 kg) |
| Display Size | 3.8 Inch |
| Product Family | PanelView Plus Terminals |
| Display Color | Grayscale |
| Input Type | Keypad |
| Communication | RS-232 Port |
| Input Power | DC |
| No. of Function keys | Eight (8) F1-F8 |
| Real Time Clock (RTC) | Battery-backed clock |
| Memory | 64 MB |
| Clock accuracy | +/-2 minutes per month |
| Series | A, B, C, D, E |
| Display Type | Grayscale passive matrix, film compensated super-twist nematic (FSTN) Color active matrix, thin-film tra |
| Display Area | 77 x 58 mm (3.0 x 2.3 in.) |
| Product Lifecycle Status* | Discontinued/Obsolete |
| Resolution | 320 x 240 pixels |
| Application memory | 5 MB for series A; 10 MB for Series B |
| Communication ports | RS232; USB |
| Communication protocols | DF1; DH485 |
| Input Voltage range | 18-30 VDC; 24 VDC, nominal |
| Brand | Allen Bradley |
