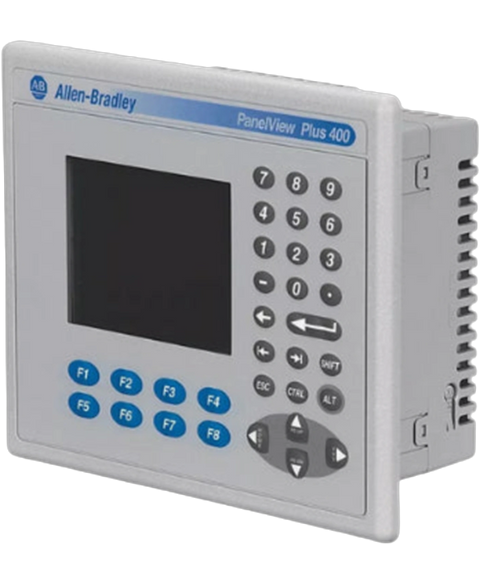

Allen Bradley 2711P-K4M20D8
The Allen-Bradley 2711P-K4M20D8 is a Panelview Plus 6 400 Operator Terminal. This operator terminal is powered by an external 18-32VDC supply voltage and has a 3.5-inch colored display with embedded Ethernet, RS-232 communication interface and Two (2) USB peripheral ports. This operator terminal has a keypad input interface.
This Allen Bradley 2711P-K4M20D8 is supplied brand new by PartLogic for machine control, process visibility, operator input, production monitoring and industrial automation applications. It forms part of our Industrial automation > Hmi > Panelview plus range and is referenced internally as PartLogic SKU PL26948617166.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | PanelView Plus 6 400 Operator Terminals |
| Product Line | Panelview Plus 6 |
| Part Number | 2711P-K4M20D8 |
| UPC | 884951344785 |
| Weight | 1.06 lbs (0.48 kg) |
| Backlight | White LED, not replaceable; 25,000 hours min at 25 °C (77 °F) |
| Display Size | 3.5 in. |
| Product Family | PanelView Plus 6 Operator Terminals |
| Display Type | Grayscale TFT LCD |
| Lifecycle status | End of life |
| Display Area | 70 x 53 mm (2.8 x 2.3 in.) |
| Resolution | 320 x 240, 16-levels gray |
| Keypad | 1 million presses |
| Keypad function keys | 8 function keys (F1…F8) |
| Internal memory | 256 MB RAM, 512 MB nonvolatile memory (approx. 79 MB free user memory) |
| Integrated ports | Ethernet, RS-232 |
| Input Voltage range | 18-32VDC |
| Display Color | Monochrome |
| Input Type | Keypad |
| Communication | Ethernet and RS-232 |
| Input Power | 18-30 VDC |
| Memory | 256 MB RAM |
| Communication Cable | 2711-NC13 |
| Series | Series A and Series B |
| Brand | Allen Bradley |
