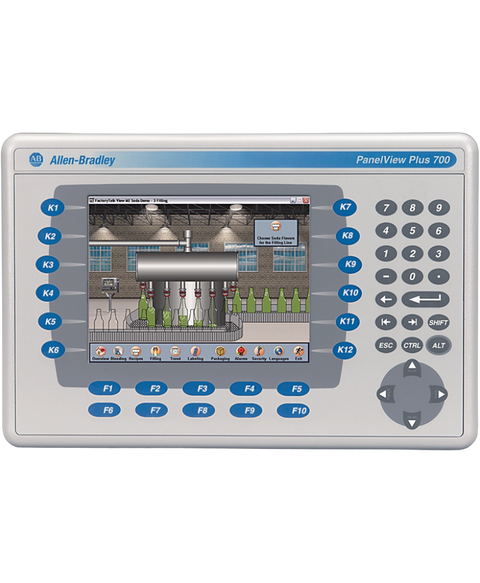

Allen Bradley 2711P-B7C4D8
The 2711P-B7C4D8 is a graphic operator terminal from Allen-Bradley. It is part of the PanelView Plus 700 operator terminal which belongs to the larger group of PanelView Plus 6 terminals. It is a Human Machine Interface (HMI) device that is powered by an external supply voltage range of 18-30VDC with 6.5-inch Color active matrix, thin-film transistor (TFT) display. It has an embedded Touchscreen and keypad operator interface and provided with multiple communication interfaces such as, One (1) Ethernet, One (1) RS-232 and Two (2) USB ports.
This Allen Bradley 2711P-B7C4D8 is supplied brand new by PartLogic for machine control, process visibility, operator input, production monitoring and industrial automation applications. It forms part of our Industrial automation > Hmi > Panelview plus range and is referenced internally as PartLogic SKU PL26941206414.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Panelviews |
| Product Line | Panelview Plus 6 |
| Part Number | 2711P-B7C4D8 |
| UPC | 612598876648 |
| Weight | 4.00 lbs (1.81 kg) |
| Display Size | 5.7 in. |
| Product Family | PanelView Plus 6 Graphic Terminals |
| Operator Input | Touch / Keypad |
| Display Type | Color active-matrix TFT |
| Display Area | 115 x 86 mm (4.5 x 3.4 in.) |
| Resolution | 320 x 240, 18-bit color graphics |
| Touch interface | 8-wire analog resistive Actuation: 1 million presses; operating force: 10…110 g |
| Keypad Interface | Stainless-steel membrane; Numeric, navigation, and function keys |
| Terminal Memory | 512 MB RAM, 512 MB nonvolatile memory (approx. 79 MB free user memory) |
| Battery (real-time clock) | Battery-backed clock timestamps critical data, accuracy is ±2 minutes per month Battery life: 4 year min at 25 °C (77 °F) Field-replaceable: cat. no. 2711P-RY2032 or equivalent CR2032 coin-cell lithium battery |
| Communication ports | Ethernet, RS-232, DH485, 2 USB host |
| Power Supply Input Voltage range | 18-30VDC |
| Power Consumption | 70 W max (2.9 A at 24V DC), 39 W typical (1.6 A at 24V DC) |
| Display Color | Color |
| Input Type | Keypad/Touchscreen |
| Communication | Ethernet and RS-232 |
| Input Power | 18-32 Volts DC |
| Memory | 512 MB RAM |
| Backlight | 2711P-RL7C2 |
| Communication Cable | 2711-NC14 |
| Series | Series A and Series B |
| Brand | Allen Bradley |
