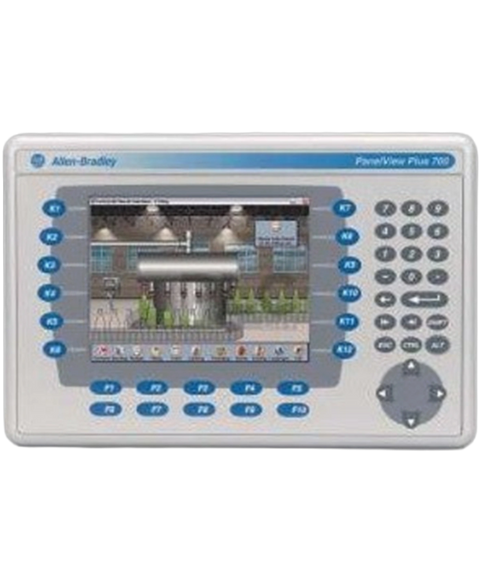

Allen Bradley 2711P-B7C4D2
The Allen-Bradley,Rockwell Automation 2711P-B7C4D2 terminal is a DC-powered interface terminal from the Allen-Bradley Panelview Plus 700 terminal series. It operates with an input voltage range between 18 and 32 Volts DC. The 2711P-B7C4D2 interface terminal can be controlled through either a keypad or a touchscreen. The keypad features arrow keys, command keys, numeric keys, and programmable function keys, and the touchscreen features color graphics. The 2711P-B7C4D2 interface terminal comes with 2 USB ports, an RS-232 port, and an Ethernet port.
This Allen Bradley 2711P-B7C4D2 is supplied brand new by PartLogic for machine control, process visibility, operator input, production monitoring and industrial automation applications. It forms part of our Industrial automation > Hmi > Panelview plus range and is referenced internally as PartLogic SKU PL26935276846.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | Operator Terminals |
| Product Line | Panelview Plus 700 |
| Part Number | 2711P-B7C4D2 |
| UPC | 662073071600 |
| Weight | 4.13 lbs (1.87 kg) |
| Display Size | 6.5 inches |
| Backlight | CCFL, 50,000 hours min at 25 ° C (77 °F) |
| Operator Input | Touch / Keypad |
| Input lifespan | 1 million actuations |
| Display Type | Color active-matrix TFT |
| Display Area | 132 x 99 mm (5.2 x 3.9 in.) |
| Resolution | 640 x 480 |
| Integrated ports | Ethernet, RS-232, 1 USB host |
| Input Voltage range | 85-264VAC, 47-63 Hz |
| Display Color | Color |
| Input Type | Keypad/Touchscreen |
| Communication | Ethernet and RS-232 |
| Input Power | 18-32 VDC |
| Memory | 128 MB |
| Communication Cable | 1761-NET-ENI |
| Series | Series A, B, C, D, E, F, G |
| Product Lifecycle Status* | Discontinued/Obsolete |
| Brand | Allen Bradley |
