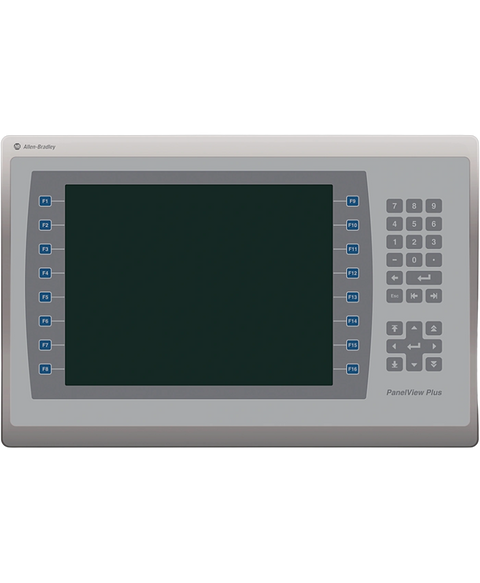

Allen Bradley 2711P-B10C22D9P
The Allen-Bradley 2711P-B10C22D9P is a PanelView Plus 7 Performance operator terminal. This Human Machine Interface (HMI) device is powered by an external supply voltage of 18-32VDC. It has a 10.4-inch Color active matrix, thin-film transistor (TFT) LCD screen with embedded Touchscreen and keypad operator interfaces. It has a variety of communication ports such as, Two (2) Ethernet and Three (3) USB ports.
This Allen Bradley 2711P-B10C22D9P is supplied brand new by PartLogic for machine control, process visibility, operator input, production monitoring and industrial automation applications. It forms part of our Industrial automation > Hmi > Panelview plus range and is referenced internally as PartLogic SKU PL26944609660.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Panelviews |
| Product Line | Panelview Plus 7 |
| Part Number | 2711P-B10C22D9P |
| UPC | 885630844640 |
| Weight | 6.00 lbs (2.72 kg) |
| Display Size | 10.1 in. |
| Product Family | PanelView Plus 7 Performance terminals |
| Operator Input | Touch / Keypad |
| Display Type | Color active-matrix TFT |
| Display Area | 196 x 118 mm (7.7 x 4.6 in.) |
| Resolution | 800 x 480 WVGA, 18-bit color graphics |
| Touch | Analog resistive Actuation: 1 million presses; operating force: 100 g |
| System Memory | 512 RAM, 512 MB nonvolatile memory (approx. 80 MB free user memory) |
| Communication ports | Two (2) Ethernet, Three (3) USB host |
| Input Voltage range | 18-30 VDC |
| Power Consumption | 50 W max (2.1 A at 24V DC) |
| Backlight | White light-emitting diode, solid state Life: 50,000 h min at 40 °C (104 °F) to half-brightness, backlight is not replaceable |
| Input Type | Touchscreen/Keypad |
| Display Color | Color |
| Memory | 512 Mb |
| Input Voltage | 24 VDC |
| Brand | Allen Bradley |
