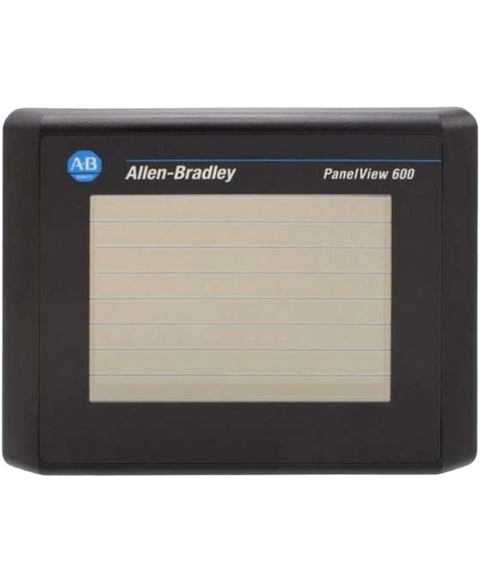

Allen Bradley 2711-T6C16L1
The Allen-Bradley 2711-T6C16L1 is a PanelView 600 Standard Operator Terminal. This operator terminal is powered by an external 18-32VDC supply voltage and has a 6-inch colored display with dual RS232 interface that supports DF1 communication and another RS232 Printer interface. It has an analog resistive touchscreen operator interface.
This Allen Bradley 2711-T6C16L1 is supplied brand new by PartLogic for machine control, process visibility, operator input, production monitoring and industrial automation applications. It forms part of our Industrial automation > Hmi > Panelview range and is referenced internally as PartLogic SKU PL26941154630.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | PanelView 600 Standard Operator Terminals |
| Product Line | Panelview 600 |
| Part Number | 2711-T6C16L1 |
| UPC | 611320217827 |
| Weight | 2.13 lbs (0.96 kg) |
| Backlight | Field replaceable 50,000 hr 1/2 life at 25 °C (77 °F) |
| Input Type | Touch |
| Product Family | PanelView Standard Terminals |
| Display Type | Active Matrix TFT with Cold Cathode Fluorescent (CCF) Backlight |
| Display Area | 115 x 87 mm (4.54 x 3.43 in.) |
| Resolution | 320 x 240 |
| Touchscreen | 128 (16 columns x 8 rows) |
| Touch Cell size | 20 x 30 pixels |
| Application memory | 190 KB application runtime 240 KB nonvolatile memory (application objects plus text and bitmaps) |
| Communication ports | RS232 (DF1); RS232 (printer) |
| Input Voltage range | 18…32V DC (24V DC nominal supply) |
| Operating Temperature | 0…55 ° C (32…131 ° F) |
| Heat Dissipation | 24 W max (1.0 A at 24V DC) |
| Display Size | 5 inches |
| Display Color | Color |
| Communication | RS-232 (DF1) and RS-232 Printer/Download |
| Input Power | 18 to 32 Volts DC |
| Memory | 240 KB |
| Communication Cable | 2711-NC13 |
| Series | A, B, C, D, E, F, G, H, I, J, K, and L |
| Product Lifecycle Status* | Discontinued/Obsolete |
| Brand | Allen Bradley |
