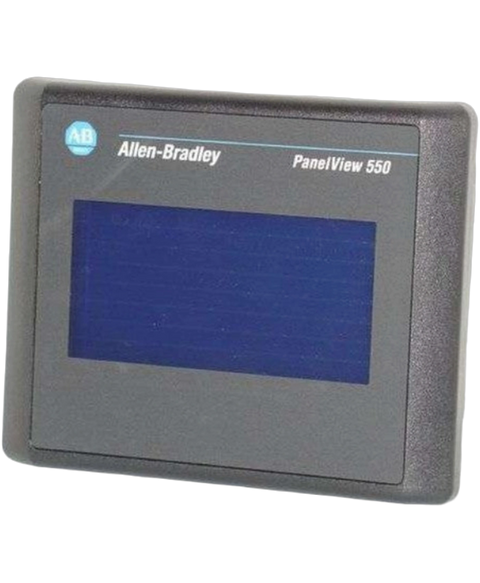

Allen Bradley 2711-T5A16L1
The Allen-Bradley 2711-T5A16L1 is a PanelView 550 Standard Operator Terminal. This operator terminal is powered by an external 18-30VDC supply voltage and has a 5.5-inch monochrome display with embedded RS232 that supports DF1 protocol and another RS232 port for printer interface. It has an analog resistive touchscreen operator interface.
This Allen Bradley 2711-T5A16L1 is supplied brand new by PartLogic for machine control, process visibility, operator input, production monitoring and industrial automation applications. It forms part of our Industrial automation > Hmi > Panelview range and is referenced internally as PartLogic SKU PL26941300493.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | PanelView 550 Standard Operator Terminals |
| Product Line | Panelview 550 |
| Part Number | 2711-T5A16L1 |
| UPC | 611320019544 |
| Weight | 2.00 lbs (0.91 kg) |
| Backlight | 100,000 hr LED backlight life |
| Input Type | Touch |
| Product Family | PanelView Standard Terminals |
| Display Type | Liquid Crystal Display (LCD) |
| Display Area | 120 x 60 mm (4.75 x 2.38 in.) |
| Resolution | 256 x 128 |
| Touchscreen | 128 (16 columns x 8 rows) |
| Touch Cell size | 26 x 30 pixels |
| Application memory | 170 KB application runtime; 240 KB nonvolatile RAM (application objects plus text and bitmaps) |
| Communication ports | RS232 (DF1); RS232 (printer) |
| Input Voltage range | 18…30V DC (24V DC nominal) |
| Operating Temperature | 0…55 ° C (32…131 ° F) |
| Heat Dissipation | 20 W (69 BTU/HR) f |
| Display Size | 5.5 inches |
| Display Color | Monochrome LCD blue mode |
| Communication | RS-232 (DF1), RS-232 Printer/Download Port |
| Input Power | 24 Volts DC |
| Memory | 170 KB application runtime |
| Communication Cable | 2711-NC13 |
| Series | A,B,C,D,E,F,G,H |
| Product Lifecycle Status* | Discontinued/Obsolete |
| Brand | Allen Bradley |
