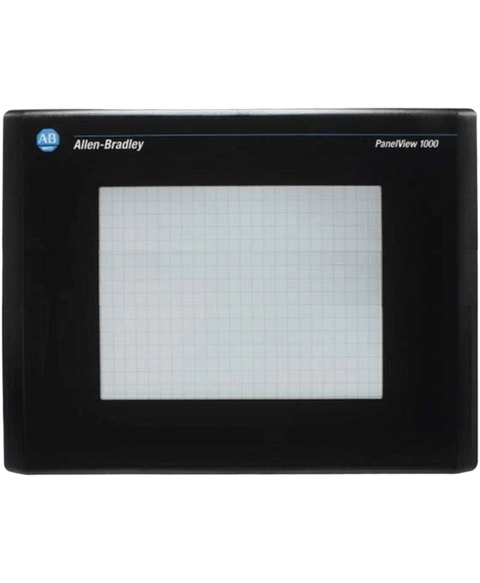

Allen Bradley 2711-T10C9
The Allen-Bradley 2711-T10C9 is a PanelView 1000 Standard Operator Terminal. This operator terminal is powered by an external 85-264VAC supply voltage and has a 10.1-inch colored display with embedded RS232 interface that supports DH485 and another RS232 port for printer interface. It has an analog resistive touchscreen operator interface.
This Allen Bradley 2711-T10C9 is supplied brand new by PartLogic for machine control, process visibility, operator input, production monitoring and industrial automation applications. It forms part of our Industrial automation > Hmi > Panelview range and is referenced internally as PartLogic SKU PL26944949262.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | PanelView 1000 Standard Operator Terminals |
| Product Line | Panelview 1000 |
| Part Number | 2711-T10C9 |
| UPC | 662072718629 |
| Weight | 6.00 lbs (2.72 kg) |
| Input Type | Touch |
| Product Family | PanelView Standard Terminals |
| Display Type | Active Matrix Thin-Film Resistor (TFT) with Cold Cathode Fluorescent (CCF) Backlight |
| Display Area | 211 x 158 mm (8.3 x 6.2 in.) |
| Resolution | 640 x 480 pixels |
| Backlight | 100,000 hr LED backlight life |
| Touchscreen | 384 (24 columns x 16 rows) |
| Touch Cell size | 26 x 30 pixels |
| Application memory | 1008K bytes (application screens) |
| Communication ports | DH485; RS232 (printer) |
| Input Voltage range | 85…264V AC, 47…63 Hz |
| Operating Temperature | 0…55 ° C (32…131 ° F) |
| Heat Dissipation | 39 W (132 BTU/HR) |
| Display Size | 10.1 inches |
| Display Color | Multi-Color |
| Communication | RS-232 (DH-485) and Printer (RS-232) Port |
| Input Power | 85-264 Volts Alternating Current |
| Memory | 256 Kilobytes |
| Enclosure Type | NEMA Type 12/13 or 4X |
| Product Lifecycle Status* | Discontinued/Obsolete |
| Brand | Allen Bradley |
