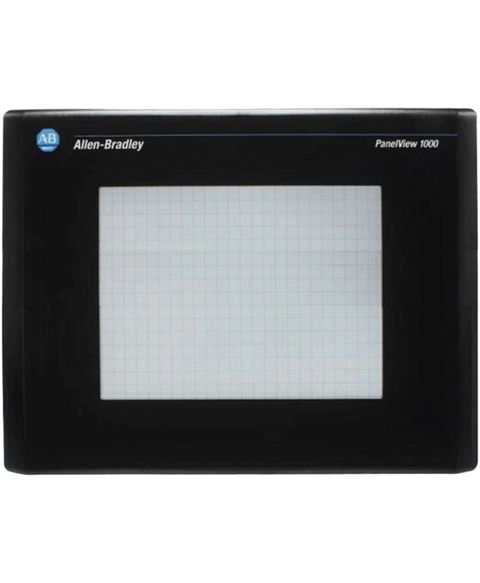

Allen Bradley 2711-T10C8L1
The Allen-Bradley 2711-T10C8L1 is a PanelView Standard operator terminal. This Human Machine Interface (HMI) device is powered by an external supply voltage of 18-32VDC. It has a 10.0-inch Active Matrix Thin-Film Resistor (TFT) with Cold Cathode Fluorescent (CCF) Backlight ang built-in Touchscreen operator interface. It has One (1) Data Highway Plus (DH+) communication port and One (1) RS232 printer interface.
This Allen Bradley 2711-T10C8L1 is supplied brand new by PartLogic for machine control, process visibility, operator input, production monitoring and industrial automation applications. It forms part of our Industrial automation > Hmi > Panelview range and is referenced internally as PartLogic SKU PL26960471382.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Panelviews |
| Product Line | Panelview 1000 |
| Part Number | 2711-T10C8L1 |
| UPC | 662468985819 |
| Weight | 8.00 lbs (3.63 kg) |
| Product Family | PanelView Standard Terminals |
| Operator Input | Touch |
| Display Type | Color active matrix TFT |
| Display Area | 211 x 158 mm (8.3 x 6.2 in.) |
| Resolution | 640 x 480 |
| Backlight | 50,000 hr 1/2 life at 25 °C (77 °F) |
| Touchscreen | 384 cells (24 columns x 16 rows) |
| Touch Cell size | 26 x 30 pixels |
| Touch Actuation | Active Matrix Thin-Film Resistor (TFT) with Cold Cathode Fluorescent (CCF) Backlight |
| Application memory | 310 KB application runtime; 1008 KB nonvolatile memory (application objects plus text and bitmaps) |
| Communication ports | Data Highway Plus (DH+); RS232 (Printer); |
| Input Voltage range | 18…32V DC |
| Nominal Input supply | 24VDC |
| Enclosure | NEMA Type 12/13, 4X (Indoor use only), IP54, |
| Display Size | 10.1 inches |
| Display Color | Multi-Color |
| Input Type | Touchscreen |
| Communication | DH Plus (DH+) and Printer (RS-232) Port |
| Input Power | 24 Volts Direct Current |
| Memory | 256 Kilobytes |
| Enclosure Type | NEMA Type 12/13 or 4X |
| Product Lifecycle Status* | Discontinued/Obsolete |
| Brand | Allen Bradley |
