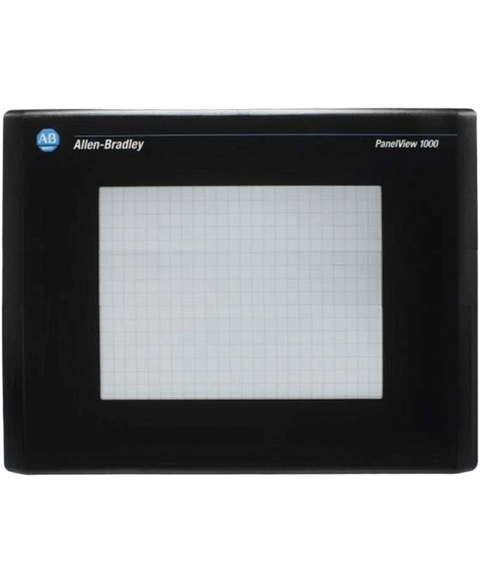

Allen Bradley 2711-T10C1
The Allen-Bradley 2711-T10C1 is a PanelView 1000 Standard Operator Terminal. This operator terminal operates when supplied by an external supply voltage range of 85-264 Volts AC, 47-63 Hertz. It has a 10-inch colored display screen with touchscreen input interface. It has an embedded Remote I,O (RIO) communication port and RS-232 printer interface.
This Allen Bradley 2711-T10C1 is supplied brand new by PartLogic for machine control, process visibility, operator input, production monitoring and industrial automation applications. It forms part of our Industrial automation > Hmi > Panelview range and is referenced internally as PartLogic SKU PL26939569561.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | PanelView 1000 Standard Operator Terminals |
| Product Line | Panelview 1000 |
| Part Number | 2711-T10C1 |
| UPC | 662072718599 |
| Weight | 8.25 lbs (3.74 kg) |
| Product Family | PanelView Standard Operator Terminals |
| Operator Input | Touch |
| Display Type | Color Active matrix |
| Display Area | 211 x 158 mm (8.3 x 6.2 in.) |
| Resolution | 640 x 480 |
| Backlight | 50,000 hr LED backlight life half-life |
| Touch Interface | 1 million presses |
| Application memory | 310KB application runtime; 1008 KB nonvolatile memory |
| Communication ports | Remote I/O (RIO); RS232 (printer) |
| Input Voltage range | 85…264V AC |
| Input Frequency | 47…63 Hz |
| Enclosure | NEMA Type 12/13, 4X (Indoor use only), IP54, IP65 |
| Status Indicators | COMM: Green Fault: Red |
| Display Size | 10.1 inches |
| Display Color | Multi-Color |
| Input Type | Touchscreen |
| Communication | Remote I/O and Printer (RS-232) Port |
| Input Power | 85 to 264 Volts AC |
| Memory | 256 KB |
| Enclosure Type | NEMA Type 12/13 or 4X |
| Product Lifecycle Status* | Discontinued/Obsolete |
| Brand | Allen Bradley |
