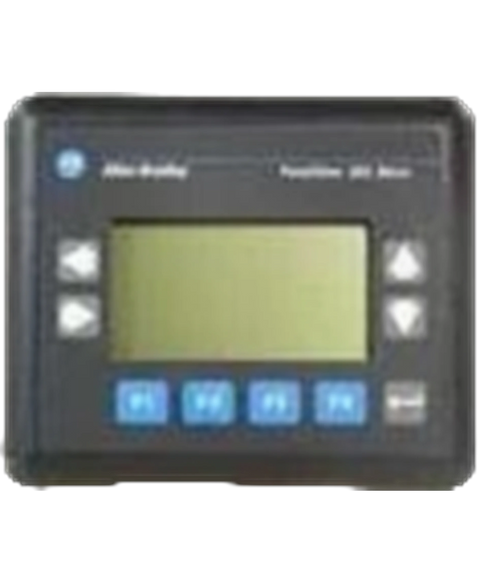

Allen Bradley 2711-M3A18L1
The Allen-Bradley 2711-M3A18L1 is a Panelview Standard 300 Micro Operator Terminal. This operator terminal is powered by an external 18-32VDC supply voltage and has a 3-inch Monochrome display screen with 8-Pin RS232 interface that supports DF1 protocol. It has Four (4) Function keys and a Keypad operator interface.
This Allen Bradley 2711-M3A18L1 is supplied brand new by PartLogic for machine control, process visibility, operator input, production monitoring and industrial automation applications. It forms part of our Industrial automation > Hmi > Panelview range and is referenced internally as PartLogic SKU PL26946982447.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | PanelView Micro 300 Standard Operator Terminals |
| Product Line | Panelview 300 |
| Part Number | 2711-M3A18L1 |
| UPC | 611320385212 |
| Weight | 0.75 lbs (0.34 kg) |
| Product Family | PanelView Standard Operator Terminals |
| Operator Input | Keypad |
| Display Type | Monochrome transflective LCD with LED backlight |
| Display Area | 73 x 42 mm (2.87 x 1.67 in.) |
| Resolution | 128 x 64 |
| Keypad Assembly | 4 function keys (F1…F4) |
| Application memory | 170 KB application runtime 240 KB nonvolatile memory (application objects plus text and bitmaps) |
| Communication ports | RS232 (DF1) |
| Input Voltage range | 18-32VDC |
| Enclosure | NEMA Type 12/13, 4X (Indoor use only), IP54, IP65 |
| Status Indicators | COMM: Green Fault: Red |
| Display Size | 3 in. |
| Display Color | Monochrome |
| Input Type | Micro Keypad |
| Communication | RS-232 (DF1) Communication Port (8-Pin Mini DIN) |
| Input Power | 24 Volt DC |
| Backlight | Non-Replaceable |
| Communication Cable | 1761-CBL-PM05 |
| Series | A and B |
| Memory | 240 KB |
| UNSPSC | 43211903 |
| Product Lifecycle Status* | Discontinued/Obsolete |
| Brand | Allen Bradley |
