Allen Bradley 2711-K5A2

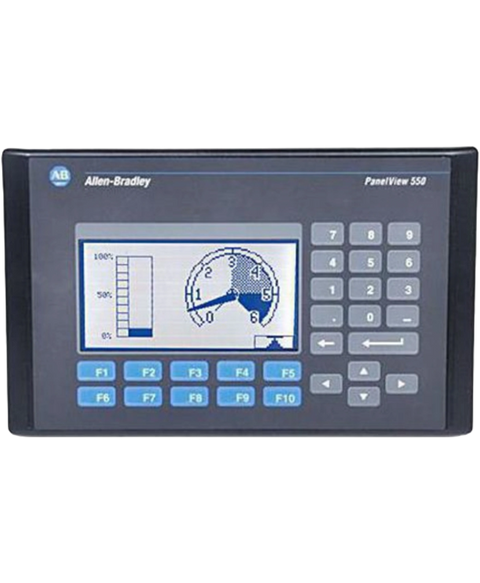

The Allen-Bradley 2711-K5A2 is a Panelview 550 Standard Operator Terminal. This operator terminal is powered by an external 85-264V AC supply voltage and has a 5.5-inch monochrome display with embedded DH485 communication port. It has Ten (10) Function keys and a Keypad operator interface.
This Allen Bradley 2711-K5A2 is supplied brand new by PartLogic for machine control, process visibility, operator input, production monitoring and industrial automation applications. It forms part of our Industrial automation > Hmi > Panelview range and is referenced internally as PartLogic SKU PL26991566253.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | PanelView 550 Standard Operator Terminals |
| Product Line | Panelview 550 |
| Part Number | 2711-K5A2 |
| UPC | 662468332699 |
| Weight | 2.63 lbs (1.19 kg) |
| Backlight | 100,000 hr LED backlight life |
| Product Family | PanelView Standard Operator Terminals |
| Operator Input | Keypad |
| Display Type | Monochrome transflective LCD with LED backlight |
| Display Area | 120 x 60 mm (4.75 x 2.38 in.) |
| Resolution | 256 x 128 |
| Keypad Assembly | 10 function keys (F1…F10) |
| Application memory | 170 KB application runtime; 240 KB nonvolatile memory (application objects plus text and bitmaps) |
| Communication ports | DH485 |
| Input Voltage range | 85…264V AC |
| Input Frequency | 47…63 Hz |
| Enclosure | NEMA Type 12/13, 4X (Indoor use only), IP54, IP65 |
| Status Indicators | COMM: Green Fault: Red |
| Display Size | 5.5 inches |
| Display Color | Monochrome LCD blue mode |
| Input Type | Keypad(F1-F10) |
| Communication | DH-485 Communication Ports |
| Input Power | 120 Volts AC |
| Memory | 170 KB application runtime |
| Communication Cable | 1747-C10 |
| Series | A,B,C,D,E,F,G,H |
| UNSPSC | 43211902 |
| Product Lifecycle Status* | Discontinued/Obsolete |
| Brand | Allen Bradley |
